Release Info
| Catalog ID | NES-TU-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | July 22, 1993 |
| Publisher | Imagineer |
| Developer | Rainbow Arts |
| Players | 1 |
| Peripherals | NES Controller |

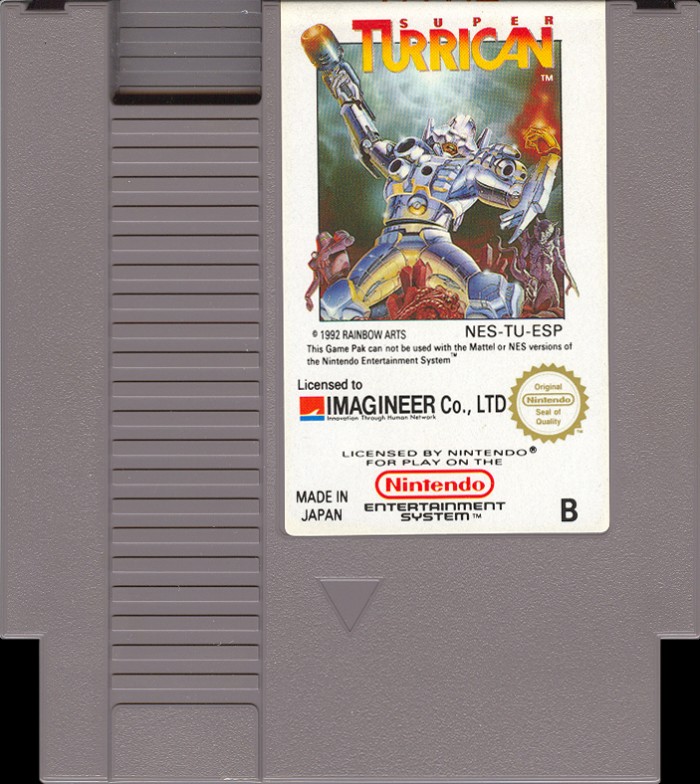

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TU-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

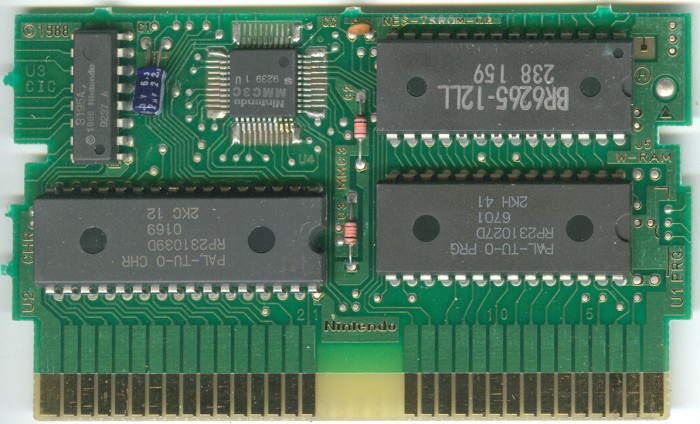

PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9241 |
| Est First Run | October 1992 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-TU-0 PRG | 128 KB | DCBA4A78 | 3 |
| CHR0 | PAL-TU-0 CHR | 128 KB | 7AF88E89 | 3 |
| N/A | ROMs Combined | 256 KB | 88C30FDA | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6701 | Mask ROM 128 KB | DIP-28 | 2KH 41 | 9241 | |
| U2 CHR | Ricoh | RP231039D 0169 | Mask ROM 128 KB | DIP-32 | 2KC 12 | 9240 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9237 A | 9237 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9239 1 U | 9239 | |
| U5 W-RAM | Rohm | BR6265-12LL | SRAM 8 KB | DIP-28 | 238 159 | 9238 |
