Release Info
| Catalog ID | NES-JM-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | August 15, 1992 |
| Publisher | Jaleco |
| Developer | LucasFilm Games |
| Players | 1 |
| Peripherals | NES Controller |

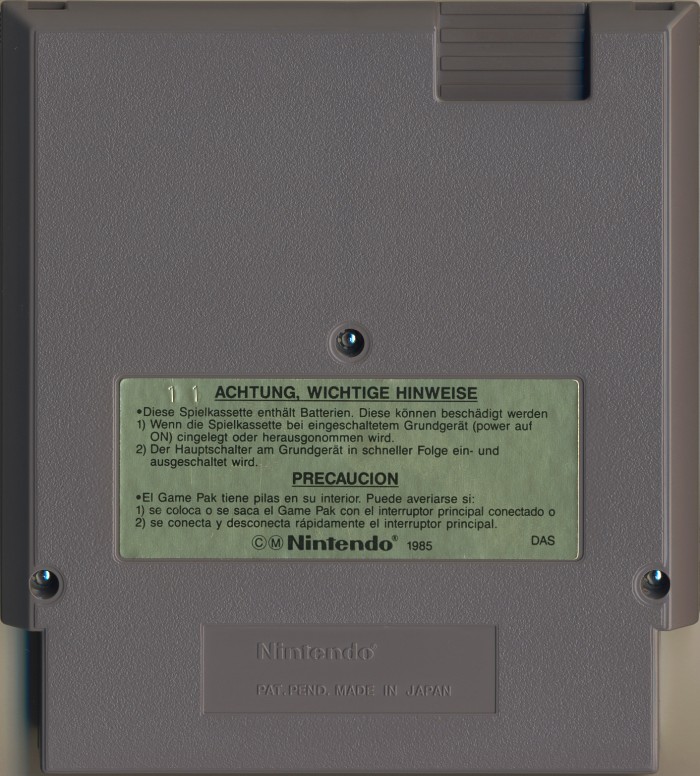

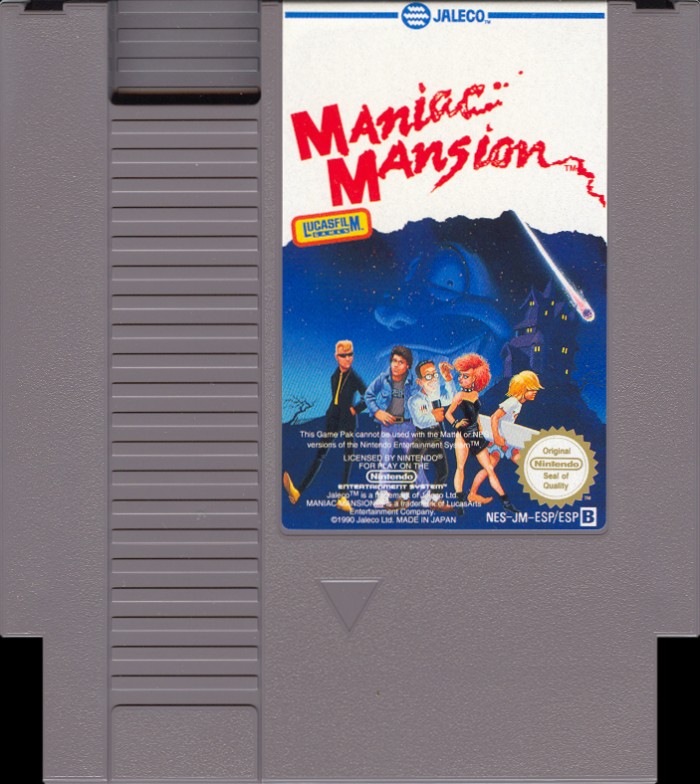

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-JM-ESP/ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9233 |
| Est First Run | August 1992 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ESP-JM-0 PRG | 256 KB | F5B2AFCA | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 93 | Mask ROM 256 KB | DIP-32 | 9233 D | 9233 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9225 EJ | 9225 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9223 C | 9223 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9231 7 A 170 | 9231 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9226 KT15 | 9226 |
