Release Info
| Catalog ID | NES-MH-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed » Multi-cart |
| Release Date | 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller,Zapper Light Gun |

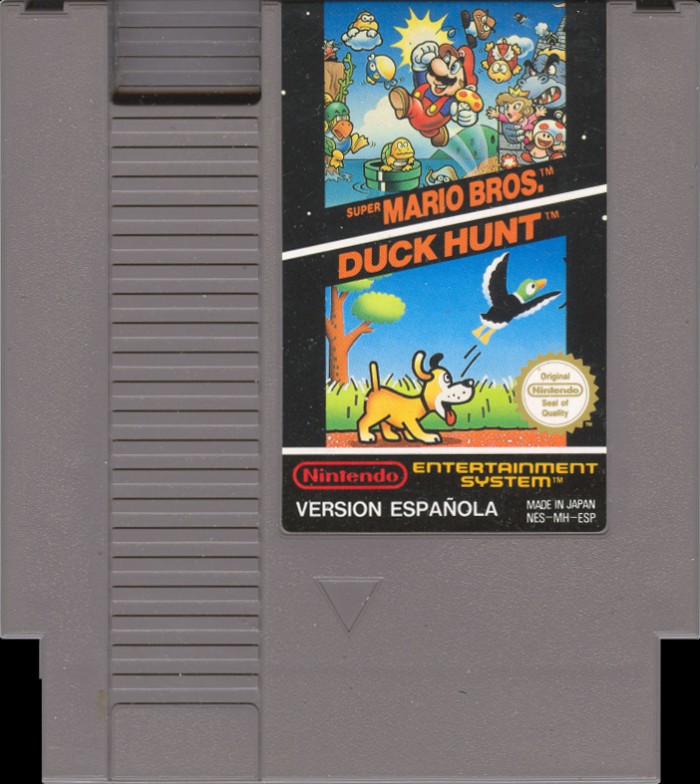

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MH-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |

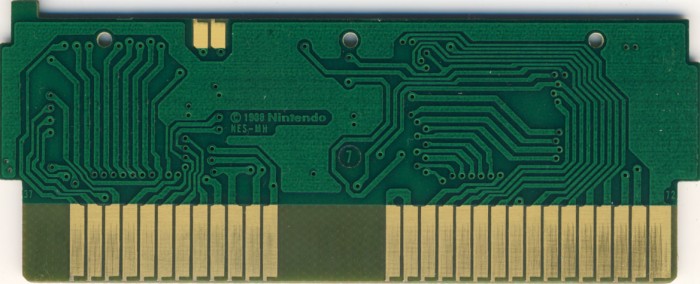

PCB Properties
| Name | NES-MH |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Sharp |
| Mfg Range | 9145 |
| Est First Run | November 1991 |
| PCB Class | NES-MHROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 64 KB | E8F8F7A5 | 2 |
| CHR0 | Not Present | 16 KB | 7ECDA8B3 | 15 |
| N/A | ROMs Combined | 80 KB | 91B4B1D7 | 2 |

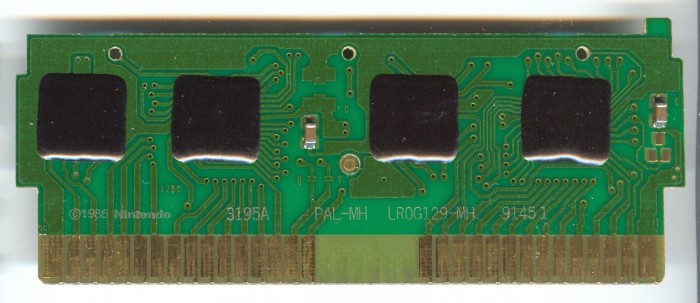

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG129 MH | Chip-on-Board PCB | PCB | 9145 1 | 9145 | |
| 512P | __Unknown | EP512 | Bonded ROM 64 KB | EPOXY | |||
| 128C | __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | |||
| __Unknown | EP3195A | Nintendo CIC | EPOXY | ||||
| __Unknown | EP74161 | 74-161 Series | EPOXY |
