Release Info
| Catalog ID | NES-LF-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | November 22, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

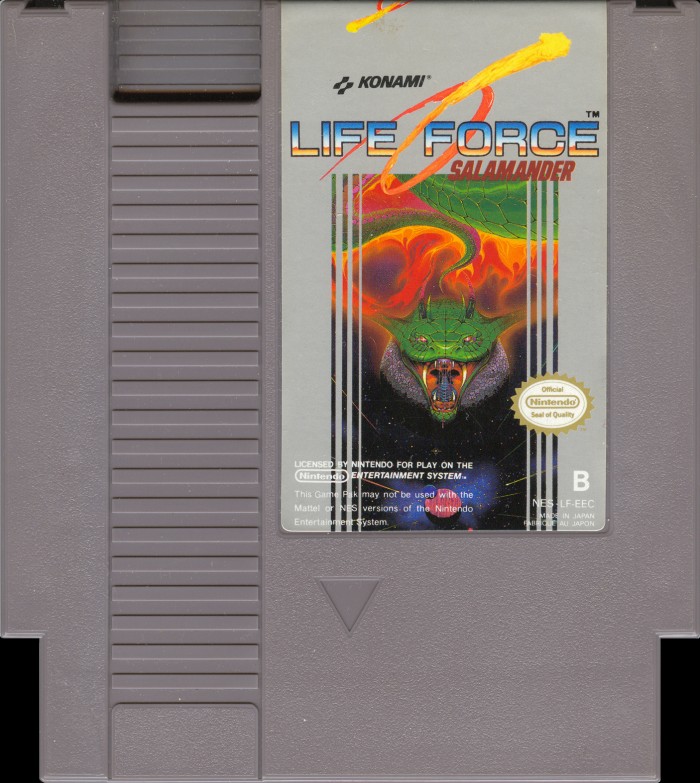

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LF-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-UNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8942 - 8942 (5) |
| Est First Run | October 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-LF-0 PRG | 128 KB | 7002FE8D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1829 | Mask ROM 128 KB | DIP-28 | 9K3 37 | 8942 | |
| U2 CHR RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 97 186 | 8926 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8942 A | 8942 | |
| U4 HC161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8922 H | 8922 | |
| U5 HC32 | Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8922 HnS | 8922 | 643810T |
