Release Info
| Catalog ID | NES-MR-GBR |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | March 15, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

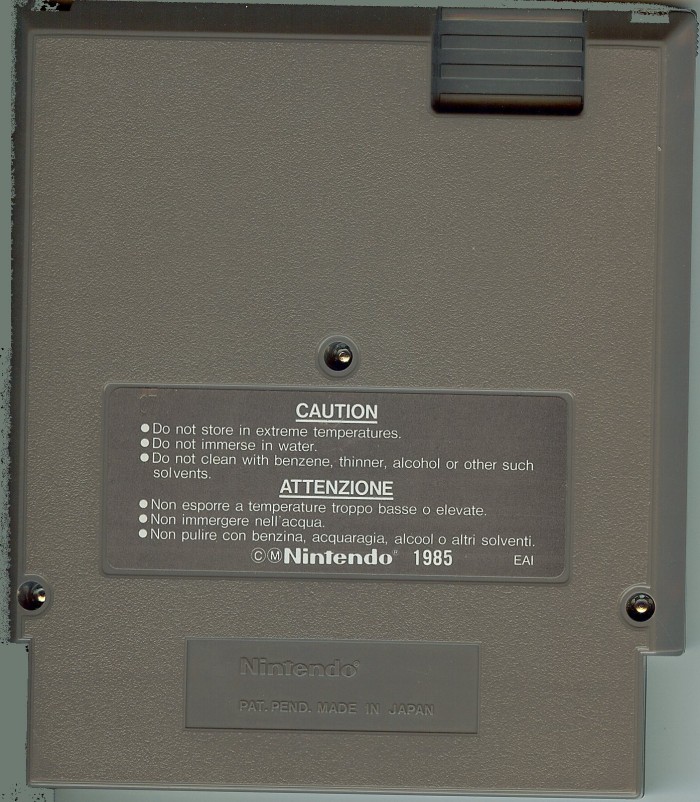

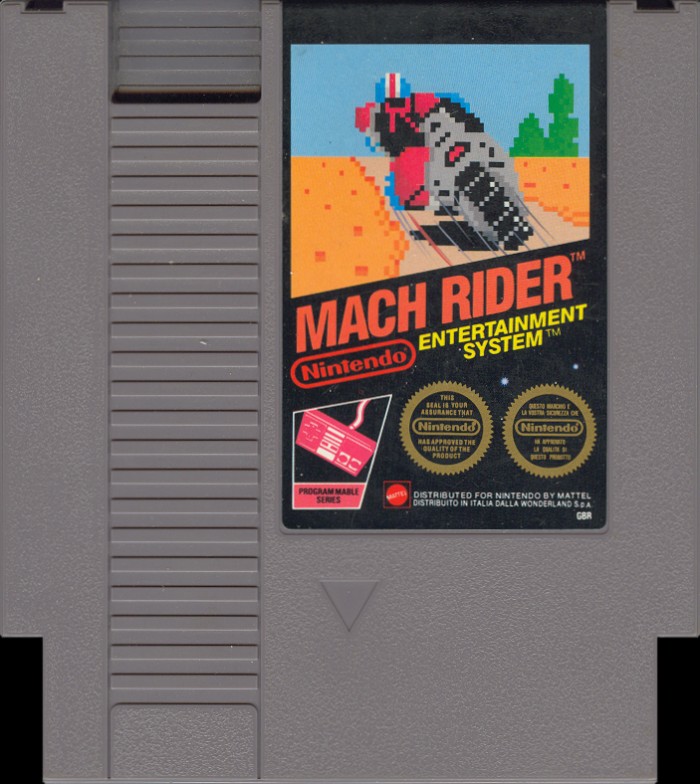

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | GBR |
| Seal of Quality | PAL: Dual |
| MfgString Present | No |
| 2-digit Code | 11 |

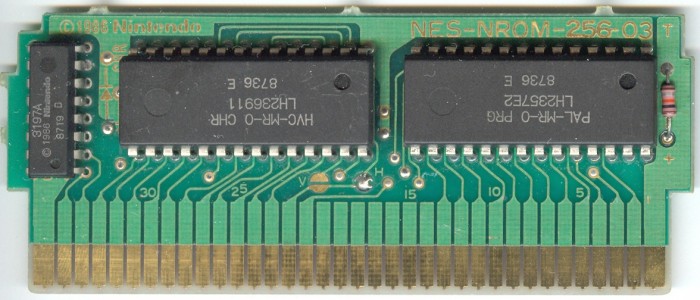

PCB Properties
| Name | NES-NROM-256-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8736 |
| Est First Run | September 1987 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-MR-0 PRG | 32 KB | 8BBE9BEC | 5 |
| CHR0 | HVC-MR-0 CHR | 8 KB | 33A2B41A | 13 |
| N/A | ROMs Combined | 40 KB | E57E5384 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2357 E2 | Mask ROM 32 KB | DIP-28 | 8736 E | 8736 | |
| CHR | Sharp | LH2369 11 | Mask ROM 8 KB | DIP-28 | 8736 E | 8736 | |
| CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 8719 B | 8719 |
