Release Info
| Catalog ID | NES-WR-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | October 15, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

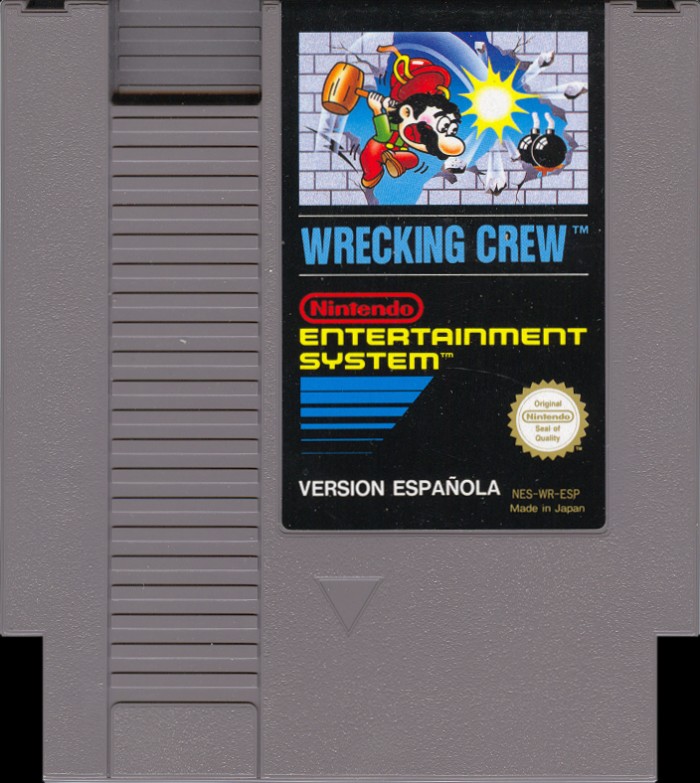

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WR-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

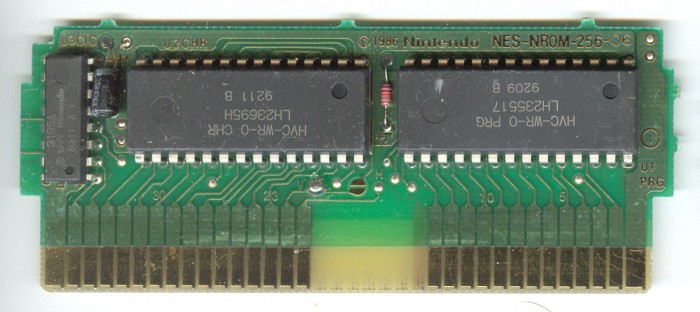

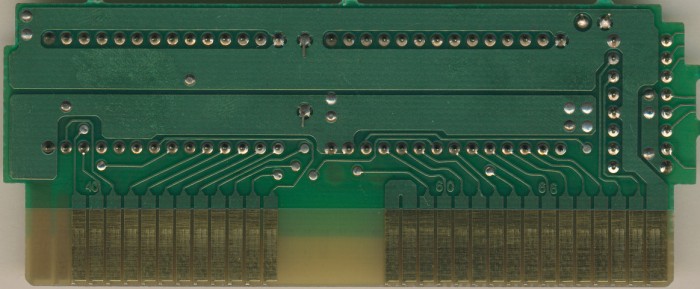

PCB Properties
| Name | NES-NROM-256-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9211 |
| Est First Run | March 1992 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-WR-0 PRG | 32 KB | 4328B273 | 8 |
| CHR0 | HVC-WR-0 CHR | 8 KB | 23F0B9FD | 8 |
| N/A | ROMs Combined | 40 KB | 9B506A48 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 17 | Mask ROM 32 KB | DIP-28 | 9209 B | 9209 | |
| U2 CHR | Sharp | LH2369 5H | Mask ROM 8 KB | DIP-28 | 9211 B | 9211 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9211 A | 9211 |
