Release Info
| Catalog ID | NES-KI-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | May 30, 1991 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

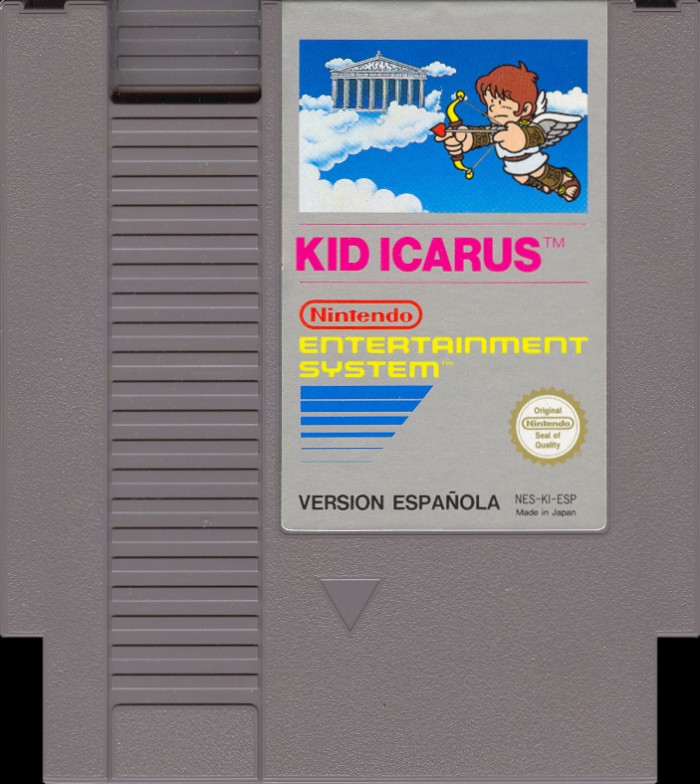

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KI-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 |
| Est First Run | July 1991 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KI-1 PRG | 128 KB | D67FD6A6 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 5356 | Mask ROM 128 KB | DIP-28 | 1GF 45 | 9127 | |
| U2 CHR RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9122 KT75 | 9122 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9124 C | 9124 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9122 1 AA | 9122 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9123 KT78 | 9123 |
