Release Info
| Catalog ID | NES-TE-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | April 12, 1991 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

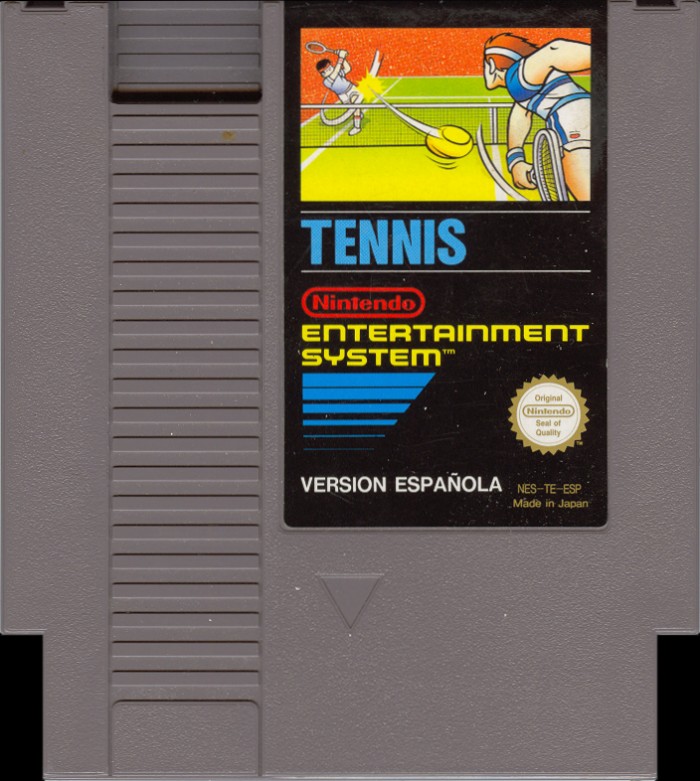

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TE-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

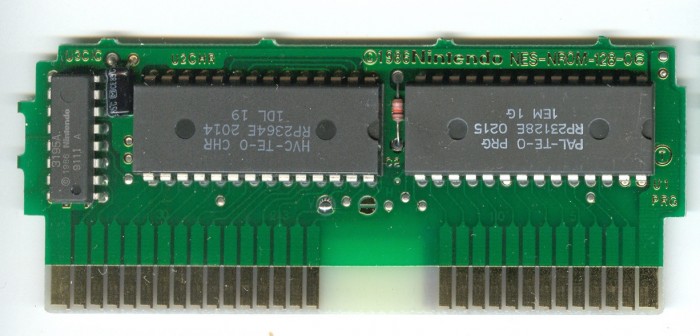

PCB Properties
| Name | NES-NROM-128-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9120 |
| Est First Run | May 1991 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-TE-0 PRG | 16 KB | 108F732E | 6 |
| CHR0 | HVC-TE-0 CHR | 8 KB | 3A34C45B | 16 |
| N/A | ROMs Combined | 24 KB | 304FA926 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23128E 0215 | Mask ROM 16 KB | DIP-28 | 1EM 1G | 9120 | |
| U2 CHR | Ricoh | RP2364E 2014 | Mask ROM 8 KB | DIP-28 | 1DL 19 | 9115 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9111 A | 9111 |
