Release Info
| Catalog ID | NES-B5-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1990 |
| Publisher | Absolute |
| Developer | Imagineering |
| Players | 1 |
| Peripherals | NES Controller |

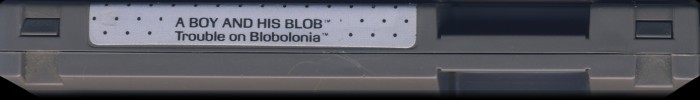

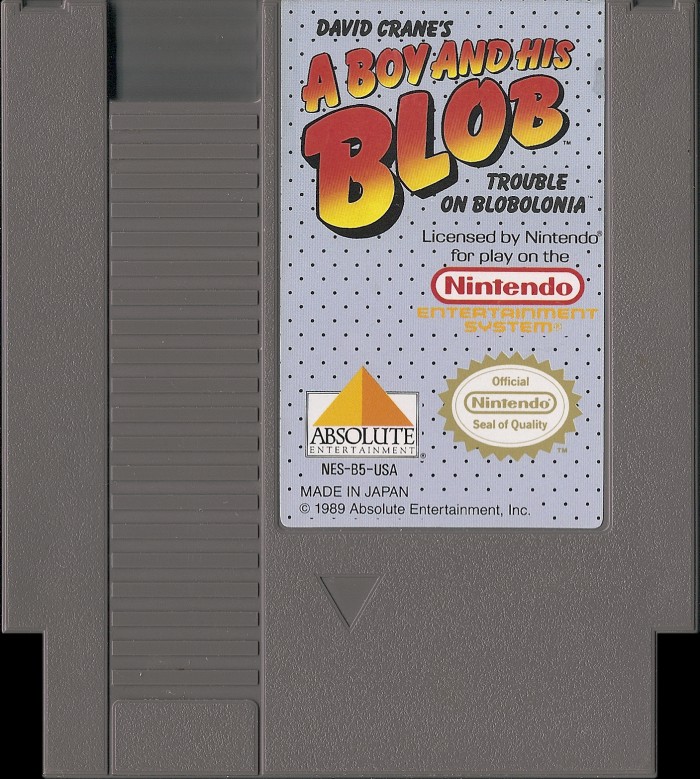

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-B5-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

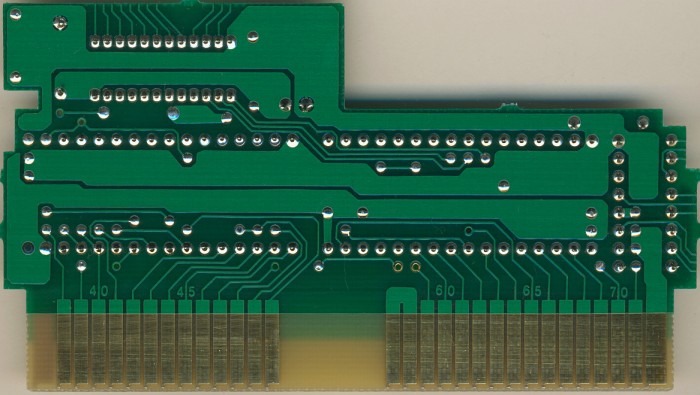

PCB Properties
| Name | NES-SLROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8953 |
| Est First Run | January 1990 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-B5-0 PRG | 128 KB | AD50E497 | 10 |
| CHR0 | NES-B5-0 CHR | 128 KB | F6F97D80 | 2 |
| N/A | ROMs Combined | 256 KB | 4D1AC58C | 2 |

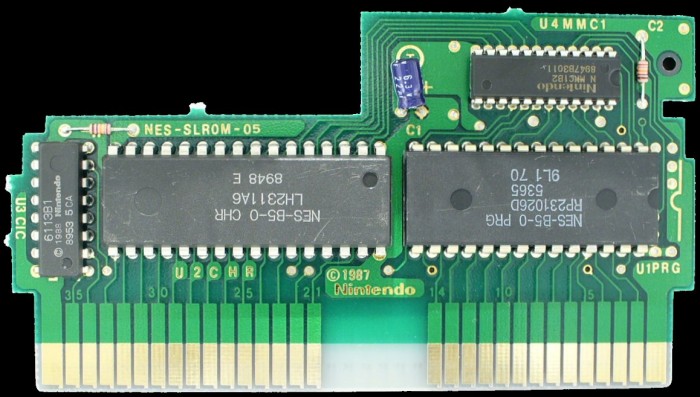

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5365 | Mask ROM 128 KB | DIP-28 | 9L1 70 | 8945 | |
| U2 CHR | Sharp | LH2311 A6 | Mask ROM 128 KB | DIP-32 | 8948 E | 8948 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8953 5 CA | 8953 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 8947 B3011 | 8947 |
