Release Info
| Catalog ID | NES-IO-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | November 1, 1991 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 4 |
| Peripherals | NES Controller |

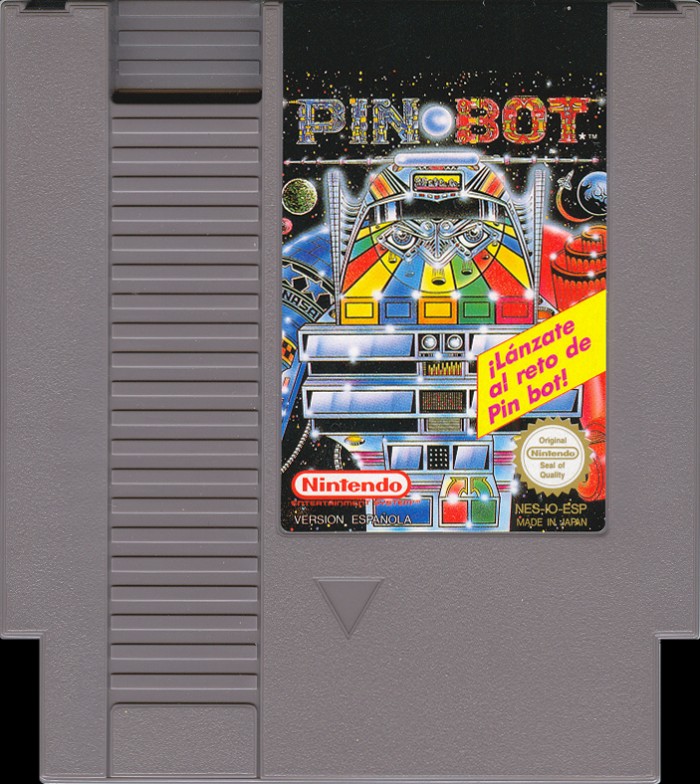

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IO-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

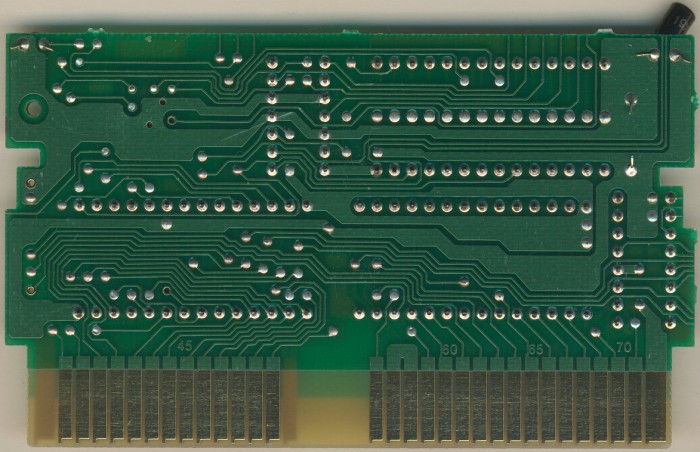

PCB Properties
| Name | NES-TQROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9146 |
| Est First Run | November 1991 |
| PCB Class | NES-TQROM |
| iNES Mapper | 119 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-IO-0 PRG | 128 KB | E1CEFA12 | 3 |
| CHR0 | NES-IO-0 CHR | 64 KB | 9089FC24 | 5 |
| N/A | ROMs Combined | 192 KB | 9247C38D | 3 |

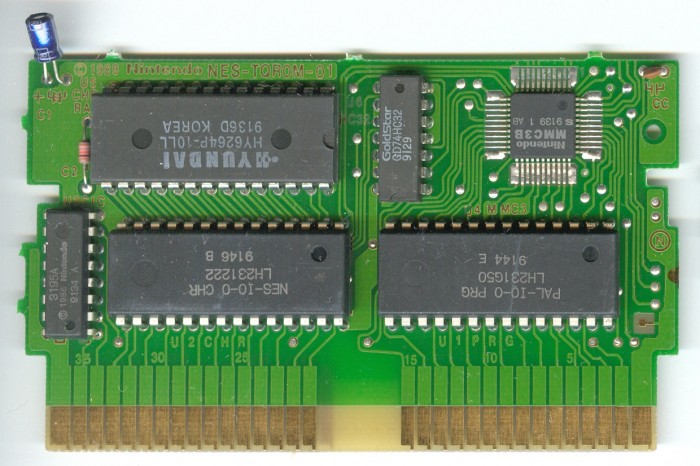

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 50 | Mask ROM 128 KB | DIP-28 | 9144 E | 9144 | |
| U2 CHR | Sharp | LH2312 22 | Mask ROM 64 KB | DIP-28 | 9146 B | 9146 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9134 A | 9134 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9139 1 AB | 9139 | |
| U5 CHR RAM | Hyundai | HY6264P-10LL | SRAM 8 KB | DIP-28 | 9136 D | 9136 | |
| U6 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | 9129 | 9129 |
