Release Info
| Catalog ID | NES-RC-GPS |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | July 6, 1992 |
| Publisher | Nintendo |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller,3-D Glasses |

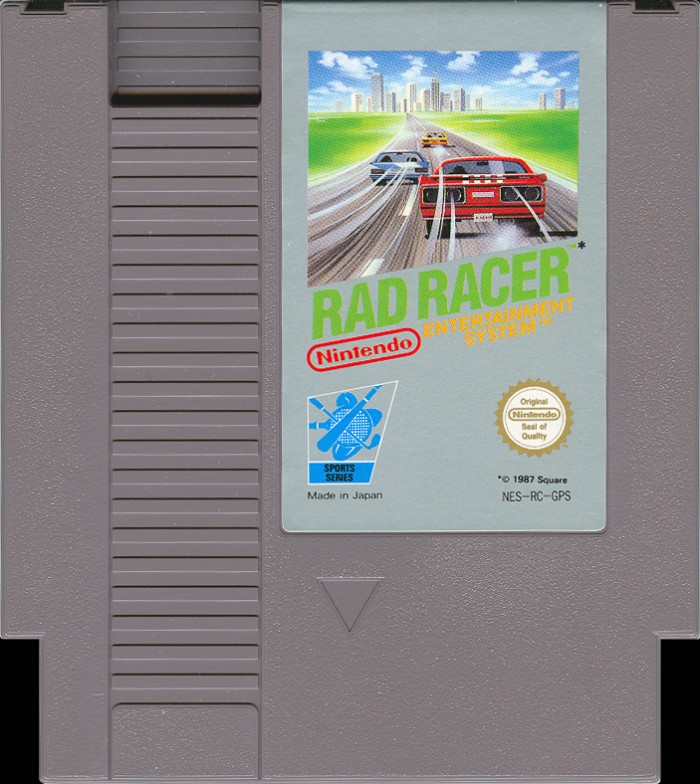

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RC-GPS |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SGROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9228 |
| Est First Run | July 1992 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RC-0 PRG | 128 KB | 654F4E90 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 5393 | Mask ROM 128 KB | DIP-28 | 2GF 43 | 9228 | |
| U2 CHR RAM | NEC | D4364C-15L | SRAM 8 KB | DIP-28 | 9122 M5003 | 9122 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9224 7 A 170 | 9224 | |
| U4 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9144 C | 9144 |
