Release Info
| Catalog ID | NES-6F-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1991 |
| Publisher | Culture Brain |
| Developer | Culture Brain |
| Players | 1 |
| Peripherals | NES Controller |

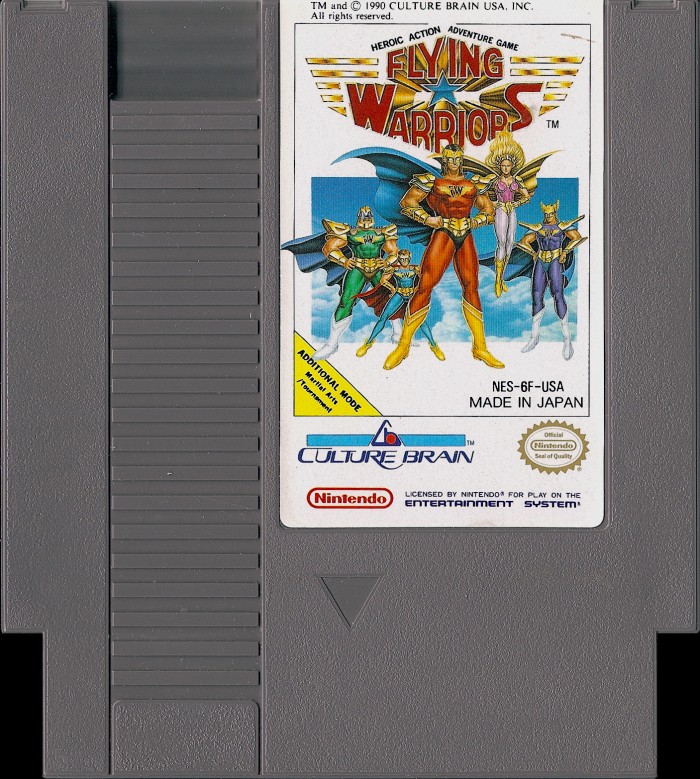

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-6F-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

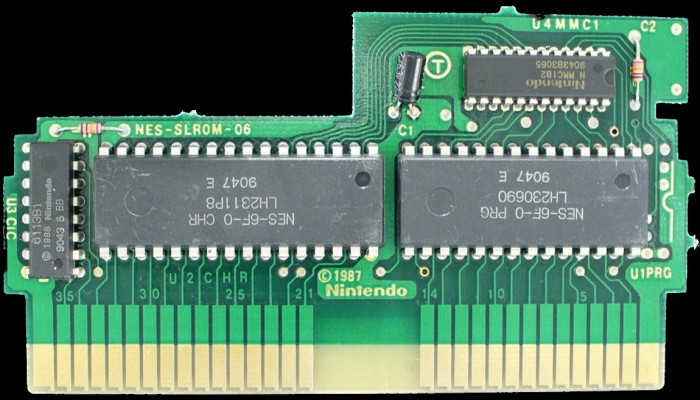

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9047 |
| Est First Run | November 1990 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-6F-0 PRG | 128 KB | 2F928646 | 2 |
| CHR0 | NES-6F-0 CHR | 128 KB | D4BF6E1F | 2 |
| N/A | ROMs Combined | 256 KB | 10180072 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 90 | Mask ROM 128 KB | DIP-28 | 9047 E | 9047 | |
| U2 CHR | Sharp | LH2311 P8 | Mask ROM 128 KB | DIP-32 | 9047 E | 9047 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9043 5 BB | 9043 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9043 B3065 | 9043 |
