Release Info
| Catalog ID | NES-YX-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Jaleco |
| Developer | Aicom |
| Players | 1 |
| Peripherals | NES Controller |

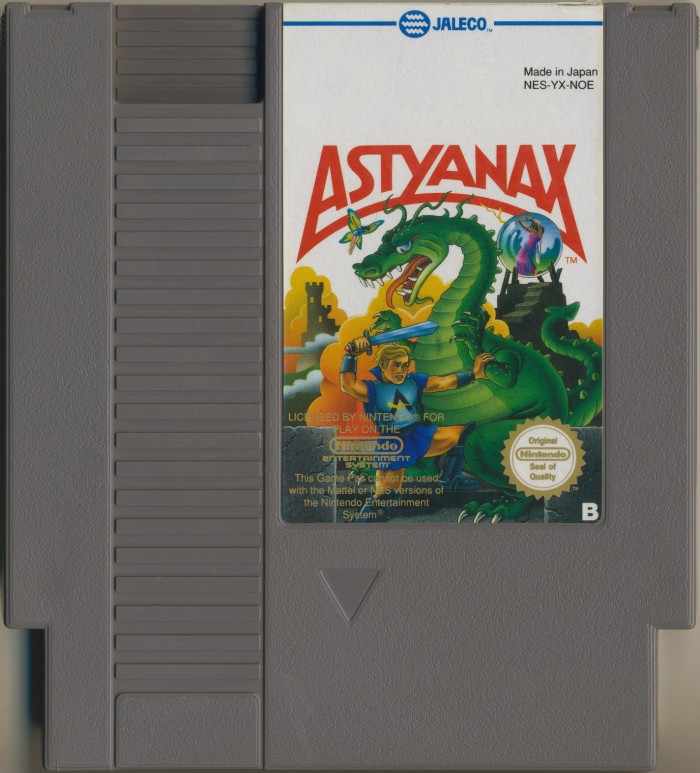

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-YX-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |

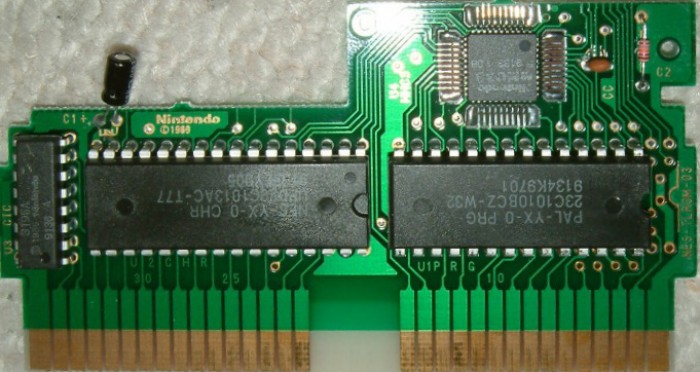

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9136 - 9136 (2) |
| Est First Run | September 1991 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-YX-0 PRG | 128 KB | 7219E2A6 | 3 |
| CHR0 | NES-YX-0 CHR | 128 KB | 545C1B47 | 5 |
| N/A | ROMs Combined | 256 KB | B68F9814 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W32 | Mask ROM 128 KB | DIP-28 | 9134 K9701 | 9134 | |
| U2 CHR | NEC | UPD23C1013AC T77 | Mask ROM 128 KB | DIP-32 | 9135 EY005 | 9135 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9136 A | 9136 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9133 1 DB | 9133 |
