Release Info
| Catalog ID | NES-UG-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | May 30, 1992 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

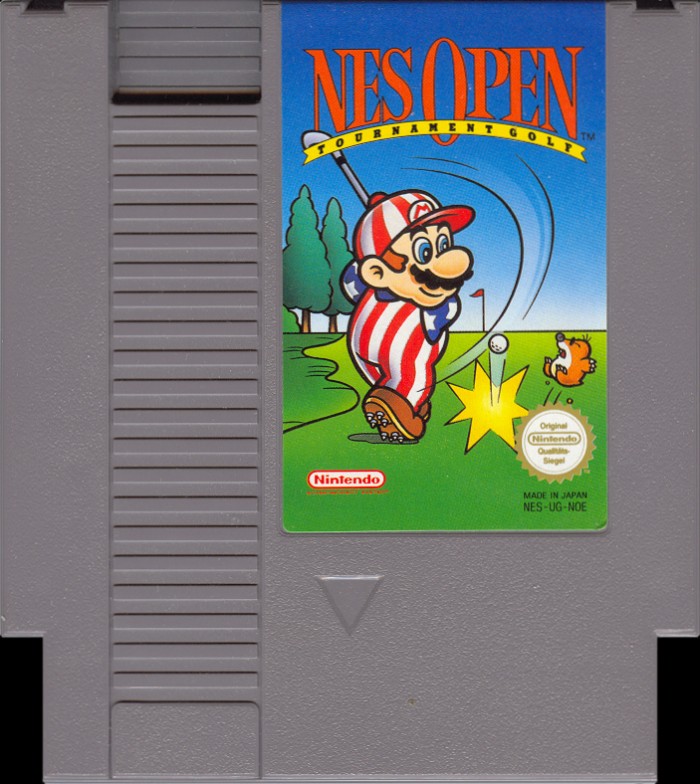

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UG-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9222 |
| Est First Run | June 1992 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-UG-0 PRG | 256 KB | 2D020965 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 71 | Mask ROM 256 KB | DIP-32 | 9222 D | 9222 | |
| U2 CHR RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9210 HCK | 9210 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9143 C | 9143 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9138 B3001 | 9138 | |
| U5 W-RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9210 HCK | 9210 |
