Release Info
| Catalog ID | NES-G0-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1990 |
| Publisher | SNK |
| Developer | SNK |
| Players | 1 |
| Peripherals | NES Controller |

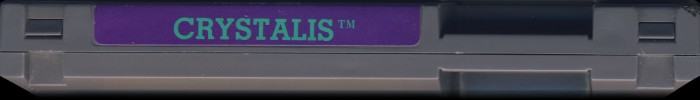

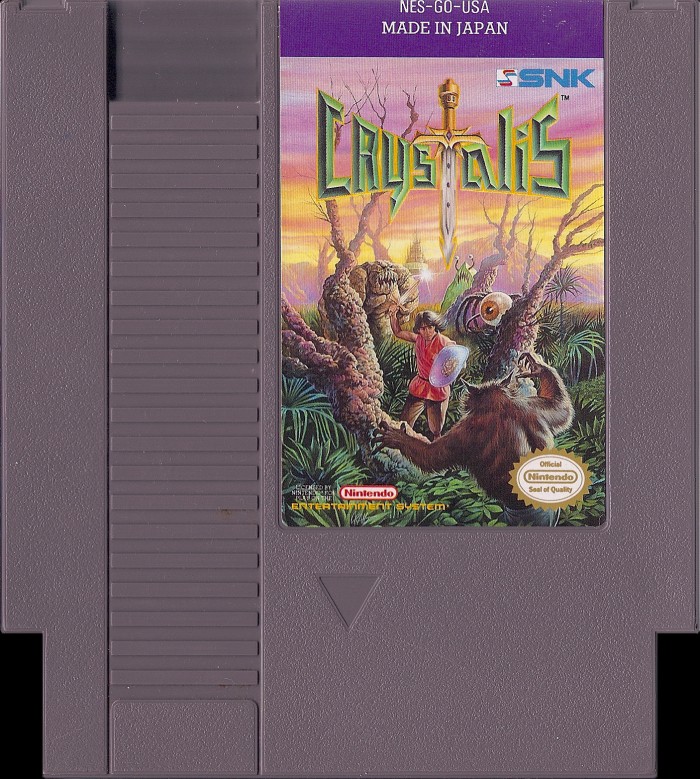

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-G0-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

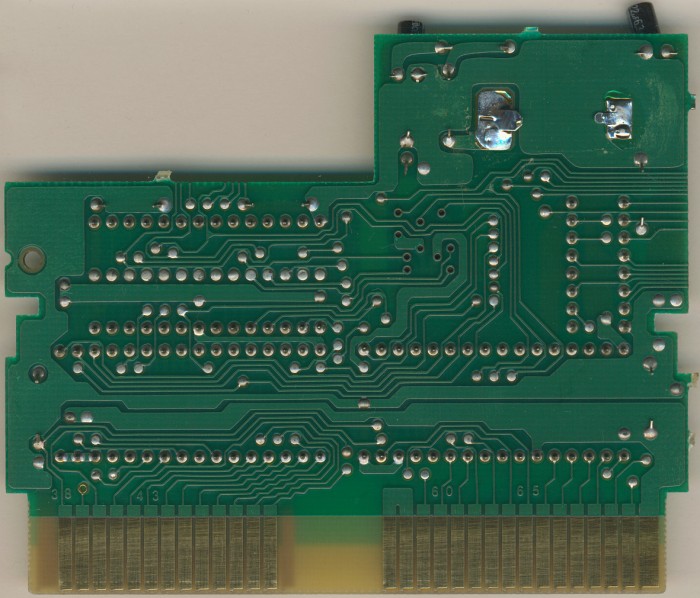

PCB Properties
| Name | NES-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9025 - 9027 (4) |
| Est First Run | June 1990 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-G0-0 PRG | 256 KB | 630BE870 | 6 |
| CHR0 | NES-G0-0 CHR | 128 KB | 864F0C1B | 6 |
| N/A | ROMs Combined | 384 KB | 1335CB05 | 6 |

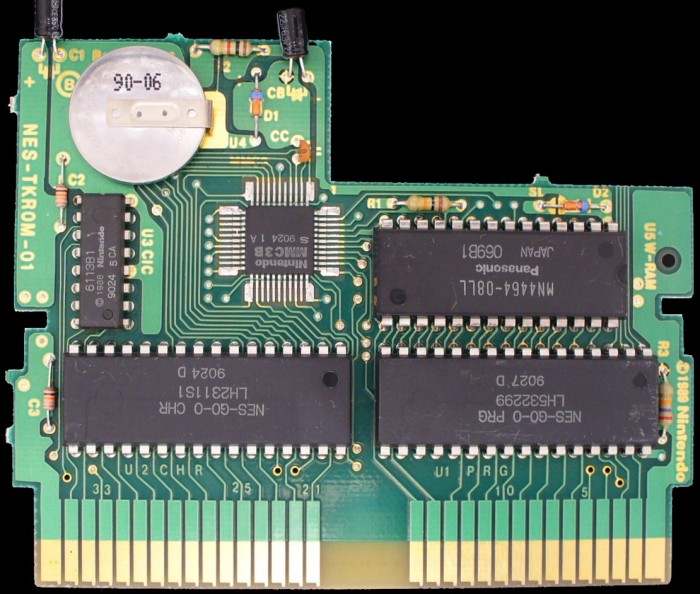

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 99 | Mask ROM 256 KB | DIP-32 | 9027 D | 9027 | |
| U2 CHR | Sharp | LH2311 S1 | Mask ROM 128 KB | DIP-32 | 9024 D | 9024 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9024 5 CA | 9024 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9024 1 A | 9024 | |
| U5 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 069 B1 | 9025 |
