Release Info
| Catalog ID | NES-DK-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | October 15, 1986 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

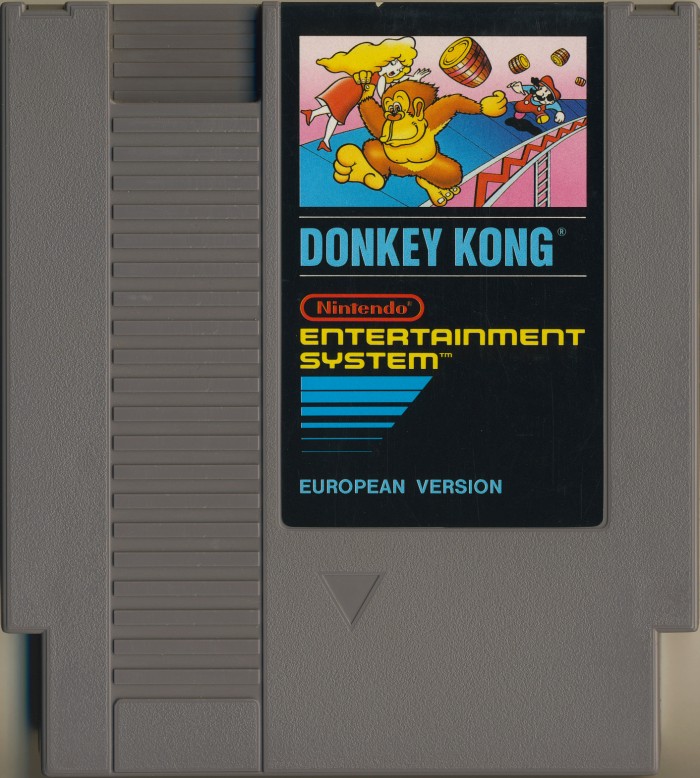

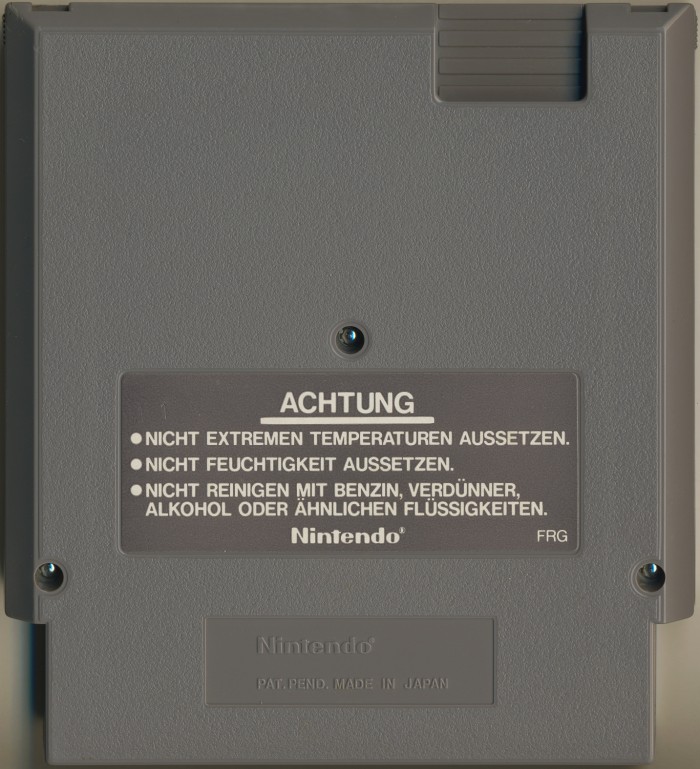

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |

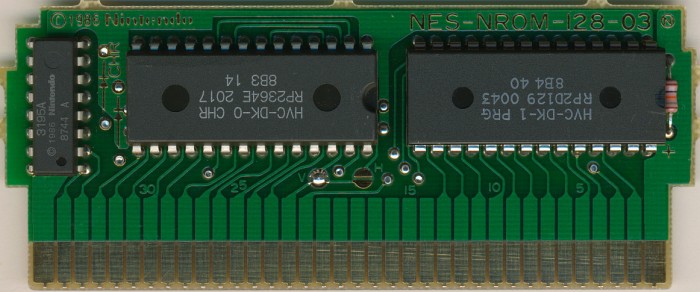

PCB Properties
| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8641 - 8808 (2) |
| Est First Run | October 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-DK-1 PRG | 16 KB | F56A5B10 | 7 |
| CHR0 | HVC-DK-0 CHR | 8 KB | A21D7C2E | 8 |
| N/A | ROMs Combined | 24 KB | 6F97C721 | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP2D129 0043 | Mask ROM 16 KB | DIP-28 | 8B4 40 | 8808 | |
| CHR | Ricoh | RP2364E 2017 | Mask ROM 8 KB | DIP-28 | 8B3 14 | 8807 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8744 A | 8744 |
