Release Info
| Catalog ID | NES-GE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1992 |
| Publisher | Koei |
| Developer | Koei |
| Players | 2 |
| Peripherals | NES Controller |

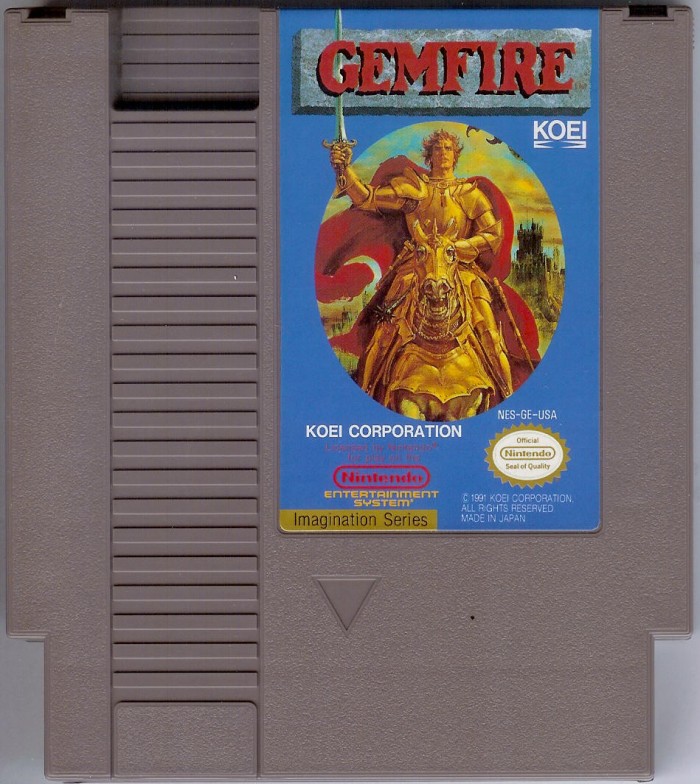

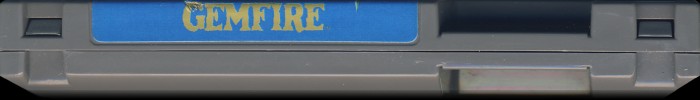

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GE-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 09 |

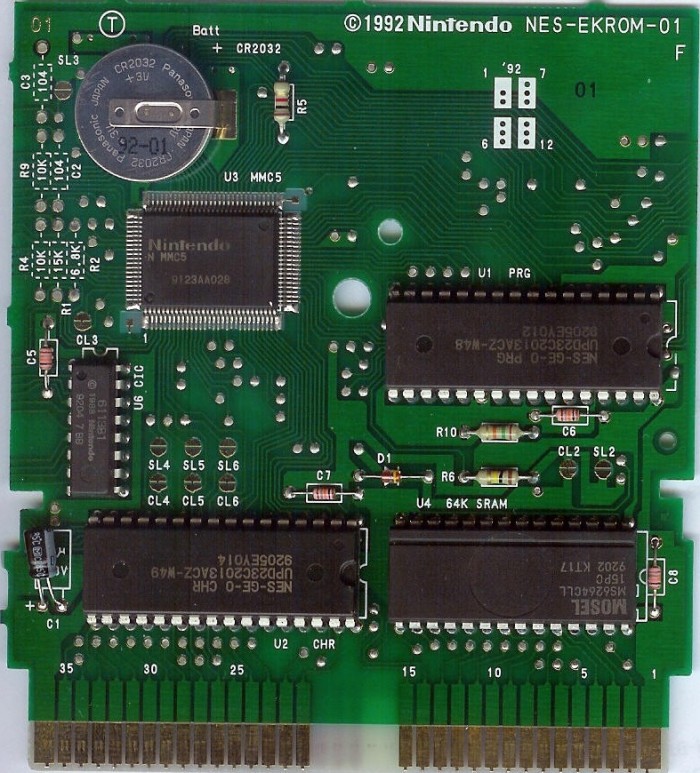

PCB Properties
| Name | NES-EKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9205 - 9206 (2) |
| Est First Run | February 1992 |
| PCB Class | NES-EKROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GE-0 PRG | 256 KB | E7C72DBB | 1 |
| CHR0 | NES-GE-0 CHR | 256 KB | 269ED2EE | 1 |
| N/A | ROMs Combined | 512 KB | 0EC6C023 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W48 | Mask ROM 256 KB | DIP-32 | 9205 EY012 | 9205 | |
| U2 CHR | NEC | UPD23C2013ACZ W49 | Mask ROM 256 KB | DIP-32 | 9205 EY014 | 9205 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9123 AA028 | 9123 | |
| U4 64K SRAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9202 KT17 | 9202 | |
| U6 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9204 7 BB | 9204 |
