Release Info
| Catalog ID | NES-DG-SWE |
|---|---|
| Region | Sweden (PAL-B) |
| Class | Licensed |
| Release Date | September 24, 1992 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | NES Controller |

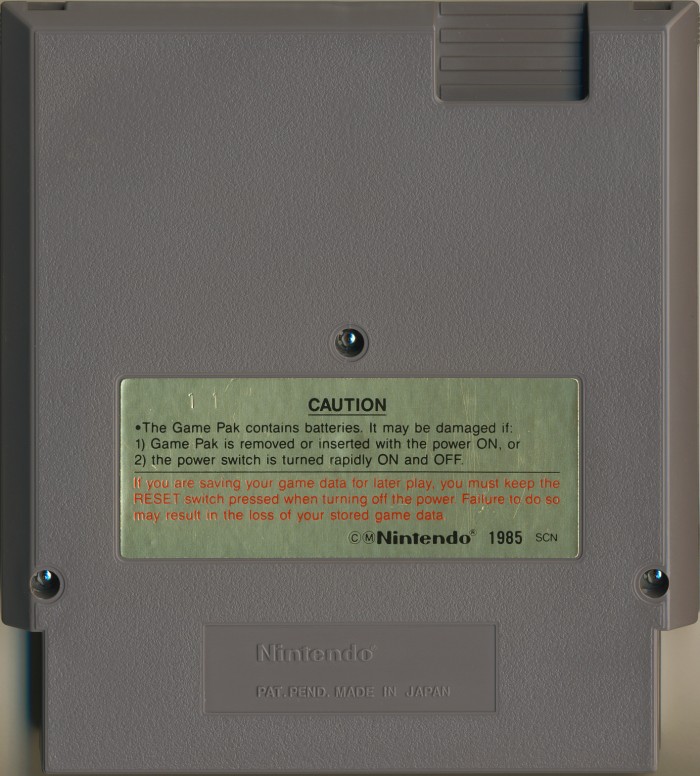

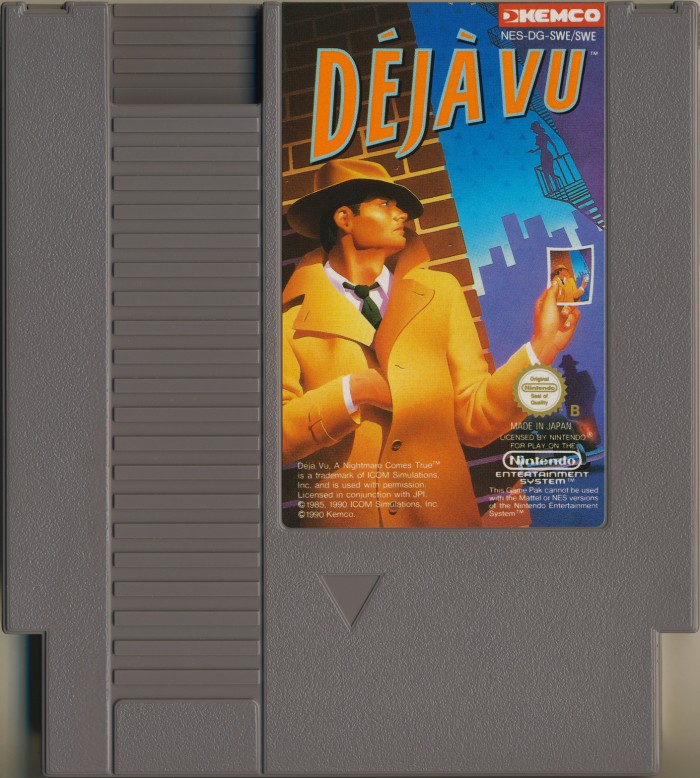

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DG-SWE/SWE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

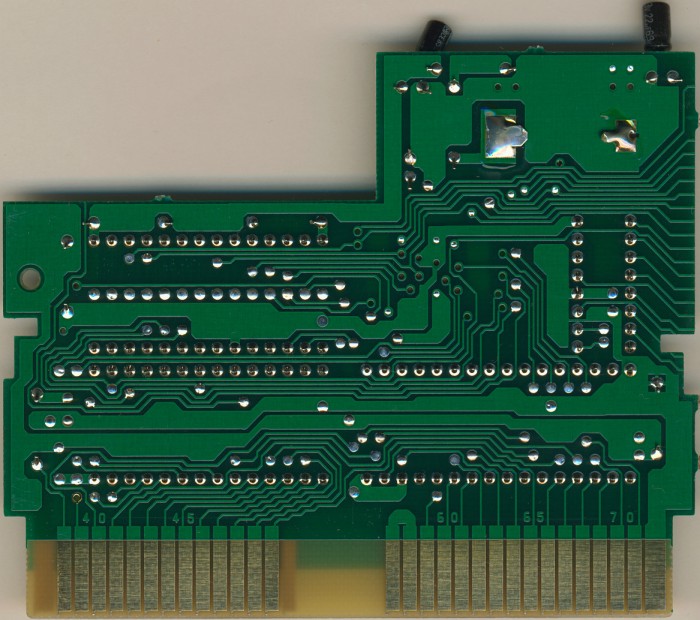

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9226 - 9226 (2) |
| Est First Run | June 1992 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SWE-DG-0 PRG | 128 KB | 07259BA7 | 2 |
| CHR0 | SWE-DG-0 CHR | 256 KB | 7CDF8B1A | 2 |
| N/A | ROMs Combined | 384 KB | 39D43261 | 2 |

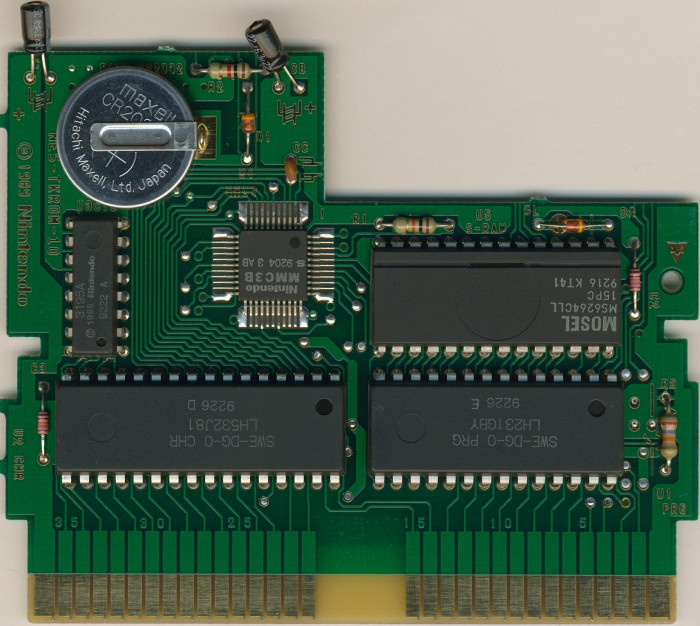

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G BY | Mask ROM 128 KB | DIP-28 | 9226 E | 9226 | |
| U2 CHR | Sharp | LH532J 81 | Mask ROM 256 KB | DIP-32 | 9226 D | 9226 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9222 A | 9222 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9204 3 AB | 9204 | |
| U5 S-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9216 KT41 | 9216 |
