Release Info
| Catalog ID | NAM-KM-5500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 18, 1988 |
| Publisher | Namco |
| Developer | Birthday |
| Players | 1 |
| Peripherals | Famicom Controller |

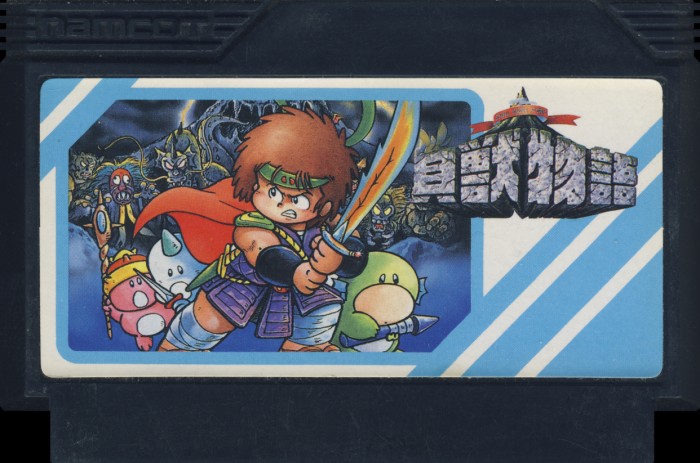

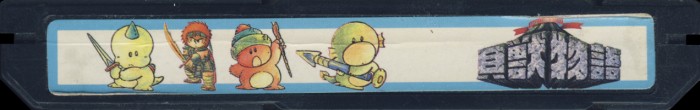

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties

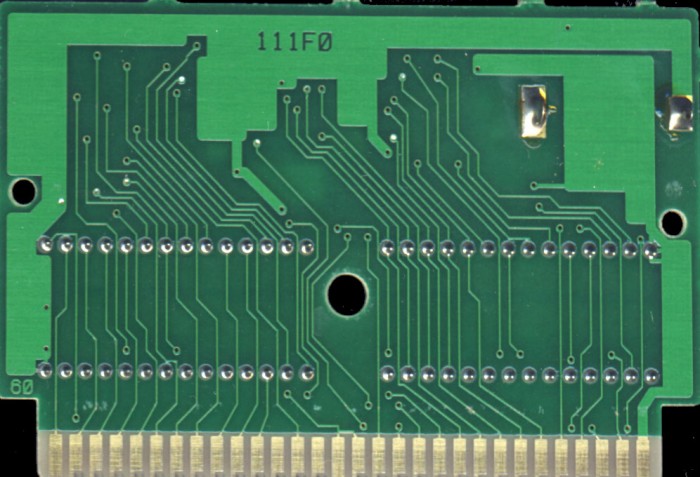

| Name | 111F0 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8839 - 8925 (3) |
| Est First Run | September 1988 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT KM PRG | 128 KB | B1B9E187 | 3 |
| CHR0 | NAMCOT KM CHR | 128 KB | 1009E2A2 | 3 |
| N/A | ROMs Combined | 256 KB | BC11E61A | 3 |

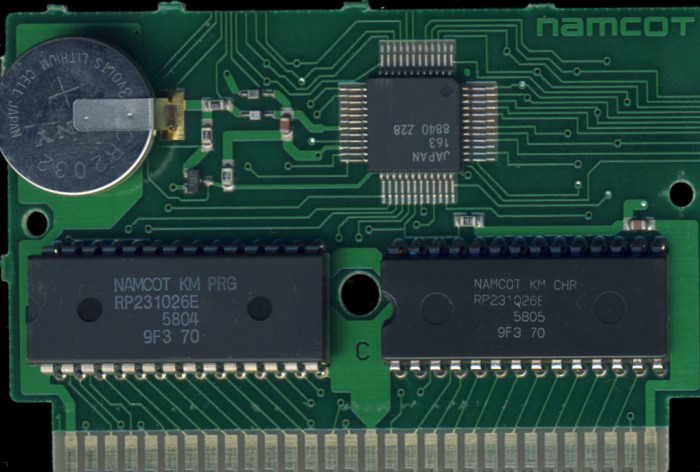

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Ricoh | RP231026E 5804 | Mask ROM 128 KB | DIP-28 | 9F3 70 | 8925 | |
| C | Ricoh | RP231026E 5805 | Mask ROM 128 KB | DIP-28 | 9F3 70 | 8925 | |
| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8840 Z28 | 8840 |
