Release Info
| Catalog ID | NAM-NGX-4500-01 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 7, 1984 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 01 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

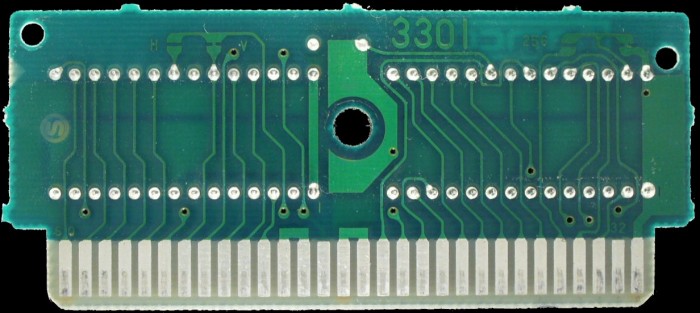

PCB Properties
| Name | 3301 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8432 - 8442 (3) |
| Est First Run | August 1984 |
| PCB Class | NAMCOT-3301 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT GX PRG | 8 KB | E48C1EBF | 3 |
| CHR0 | NAMCOT GX CHR | 8 KB | 873D3083 | 3 |
| N/A | ROMs Combined | 16 KB | 084F61CD | 3 |

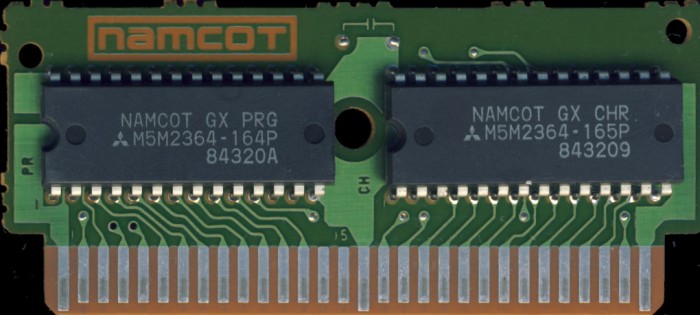

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M2364 164P | Mask ROM 8 KB | DIP-28 | 8432 0A | 8432 | |
| CH | Mitsubishi | M5M2364 165P | Mask ROM 8 KB | DIP-28 | 8432 09 | 8432 |
