Release Info
| Catalog ID | NES-OW-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1989 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | NES Controller,Zapper Light Gun |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OW-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

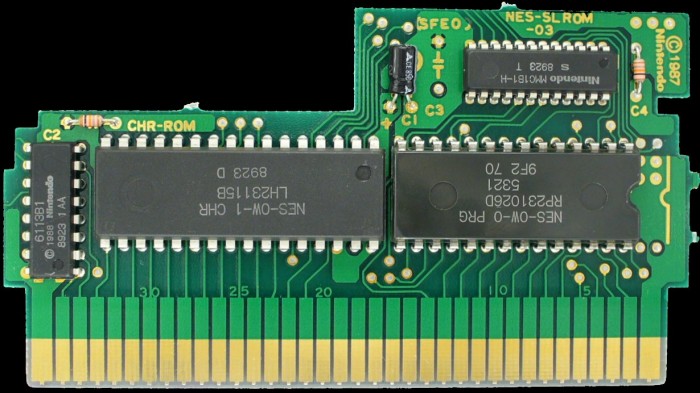

PCB Properties
| Name | NES-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8914 - 8924 (3) |
| Est First Run | April 1989 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-OW-0 PRG | 128 KB | 1388AEB9 | 5 |
| CHR0 | NES-OW-1 CHR | 128 KB | B6C77A38 | 8 |
| N/A | ROMs Combined | 256 KB | EDC3662B | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231026D 5321 | Mask ROM 128 KB | DIP-28 | 9F2 70 | 8924 | ||
| CHR-ROM | Sharp | LH2311 5B | Mask ROM 128 KB | DIP-32 | 8923 D | 8923 | |
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8923 1 AA | 8923 | ||
| Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8923 T | 8923 |
