Release Info
| Catalog ID |
KON-RC821 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
September 25, 1987 |
| Publisher |
Konami |
| Developer |
Konami |
| Players |
2 |
| Peripherals |
Famicom Controller |

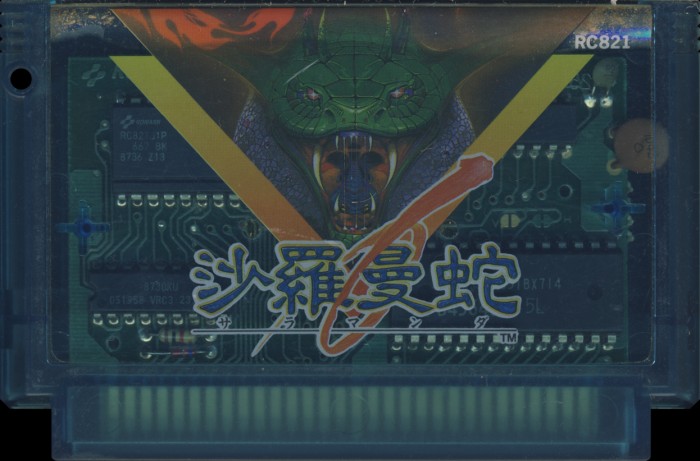

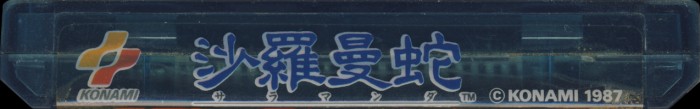

Cart Properties
| Cart Producer |
Konami |
| Color |
Clear Green |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
RC821 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
350685 |
| PCB Producer |
Konami |
| Manufacturer |
Not Specified |
| Mfg Range |
8735 - 8736 (3) |
| Est First Run |
September 1987 |
| PCB Class |
KONAMI-VRC-3 |
| iNES Mapper |
73 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
VRC3 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
RC821J1P |
128 KB |
AC652B47 |
3 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Fujitsu |
MB831002
|
Mask ROM
128 KB
|
DIP-28 |
8736
Z13
|
8736 |
|
|
NEC |
D4364C-15L
|
SRAM
8 KB
|
DIP-28 |
8651
BX714
|
8651 |
|
|
NEC |
051958 VRC3
237
|
Konami VRC III
|
DIP-18 |
8730
KU
|
8730 |
|
|
Fujitsu |
MB8464A-10L-SK
|
SRAM
8 KB
|
SDIP-28 |
8725
R28
|
8725 |
|
Additional Images
PCB Images
