Release Info
| Catalog ID | KON-RC827 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 26, 1988 |
| Publisher | Konami |
| Developer | Home Data |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC827 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

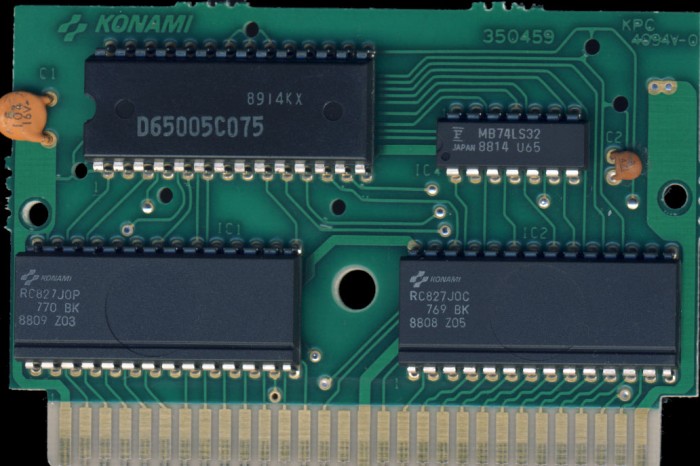

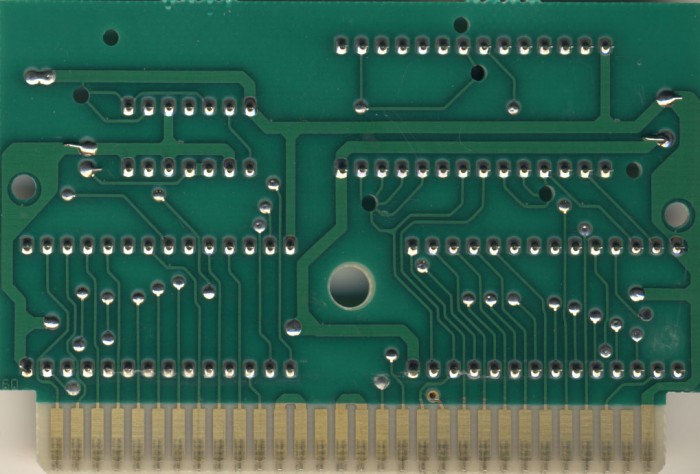

PCB Properties
| Name | 350459 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8914 |
| Est First Run | April 1989 |
| PCB Class | KONAMI-VRC-1 |
| iNES Mapper | 75 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, VRC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC827J0P | 128 KB | D8DB37CC | 1 |
| CHR0 | RC827J0C | 128 KB | 0874FEA7 | 1 |
| N/A | ROMs Combined | 256 KB | 794CAAB6 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8809 Z03 | 8809 | |
| IC2 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8808 Z05 | 8808 | |
| IC3 | NEC | D65005C075 | Konami VRC | DIP-28 | 8914 KX | 8914 | |
| IC4 | Fujitsu | MB74LS32 | 74-32 Series | DIP-14 | 8814 U65 | 8814 |
