Release Info
| Catalog ID |
KON-RC818 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
March 18, 1987 |
| Publisher |
Konami |
| Developer |
Konami |
| Players |
1 |
| Peripherals |
Famicom Controller |

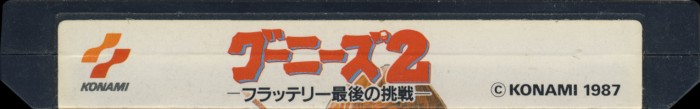

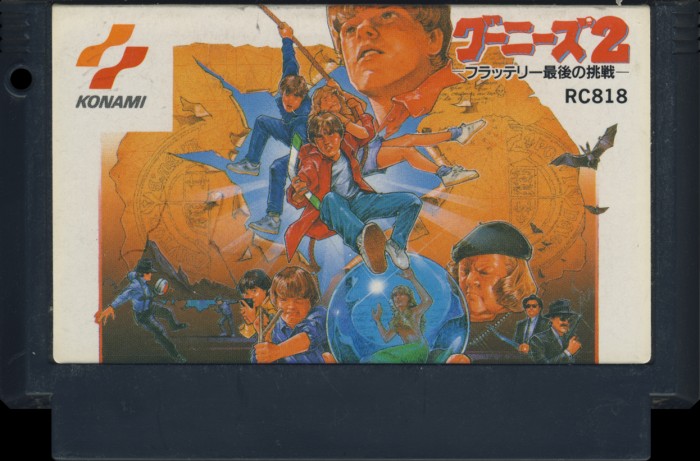

Cart Properties
| Cart Producer |
Konami |
| Color |
Black |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
RC818 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
350465 |
| PCB Producer |
Konami |
| Manufacturer |
Not Specified |
| Mfg Range |
8709 - 8711 (4) |
| Est First Run |
March 1987 |
| PCB Class |
KONAMI-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
RC 818J0P |
128 KB |
92F04530 |
4 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Panasonic |
MN231001
|
Mask ROM
128 KB
|
DIP-28 |
7
2T
|
8710 |
|
|
Fujitsu |
MB8464-15L
|
SRAM
8 KB
|
DIP-28 |
8644
R18
|
8644 |
BA |
|
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
8704
CA
|
8704 |
|
|
Panasonic |
MN74HC32
|
74-32 Series
|
DIP-14 |
7
|
8706 |
|
