Release Info
| Catalog ID | KON-RC816 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 18, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

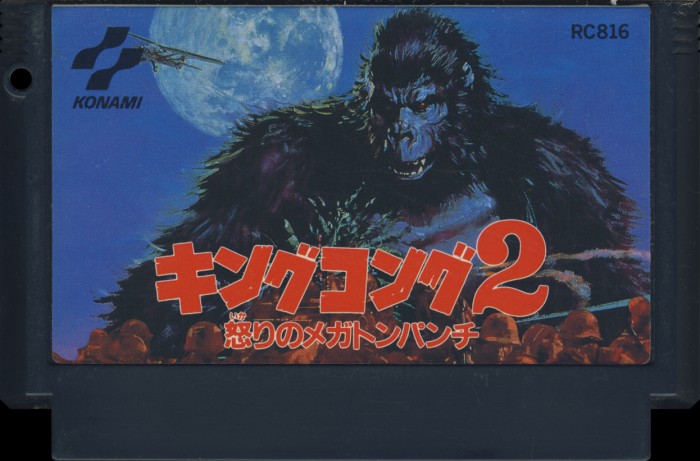

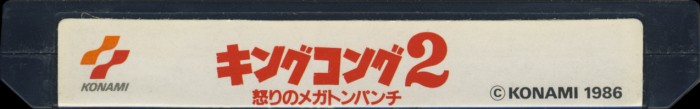

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC816 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

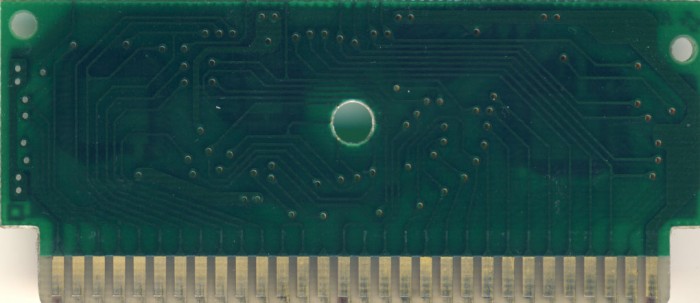

PCB Properties
| Name | 4036 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Mitsubishi |
| Mfg Range | 8648 - 8649 (4) |
| Est First Run | December 1986 |
| PCB Class | KONAMI-VRC-1 |
| iNES Mapper | 75 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, VRC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | C3DF85C3 | 4 |
| CHR0 | Not Present | 128 KB | 1EC37AF0 | 4 |
| N/A | ROMs Combined | 256 KB | B06C0674 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

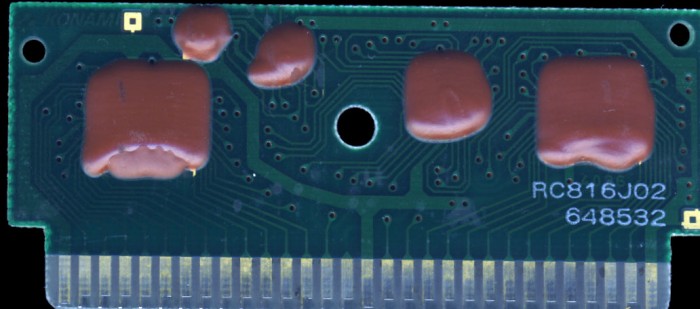

| PCB | Mitsubishi | RC816J02 | Chip-on-Board PCB | PCB | 648 532 | 8648 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EPVRC1 | Konami VRC | EPOXY | ||||
| __Unknown | EP7432 | 74-32 Series | EPOXY |
