Release Info
| Catalog ID | TFC-KHH-6800-25 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 21, 1989 |
| Publisher | Taito |
| Developer | Winky Soft |
| Players | 2 |
| Peripherals | Famicom Controller |

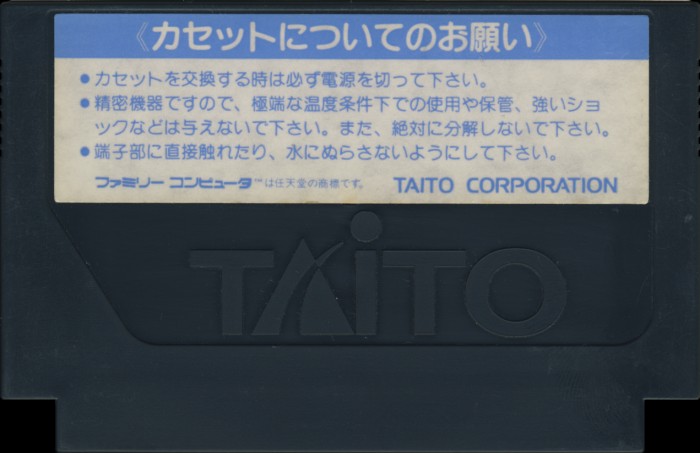

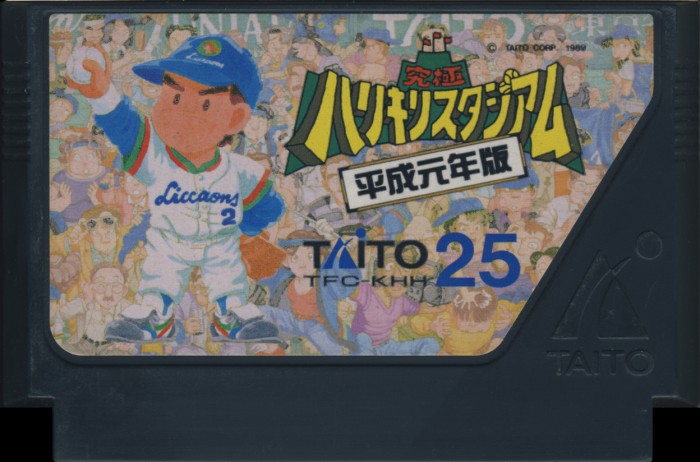

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-KHH |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

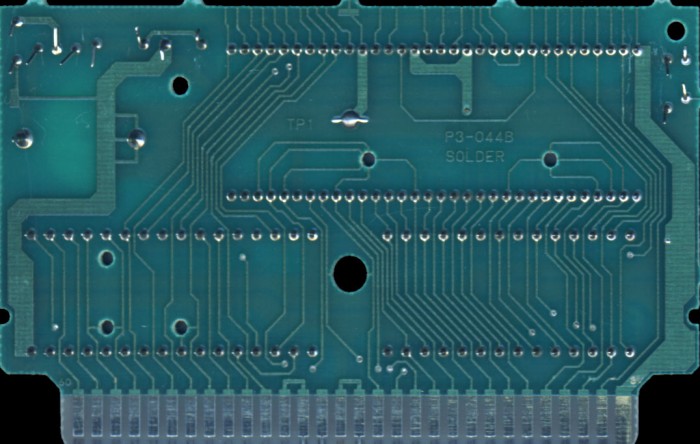

PCB Properties
| Name | P3-044B |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8930 - 8932 (3) |
| Est First Run | July 1989 |
| PCB Class | TAITO-X1-017 |
| iNES Mapper | 82 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | X1-017 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PRG-X3-025B | 128 KB | 4819A595 | 3 |
| CHR0 | CHR-X3-026 | 256 KB | 1C36A136 | 3 |
| N/A | ROMs Combined | 384 KB | 0BBF80CB | 3 |

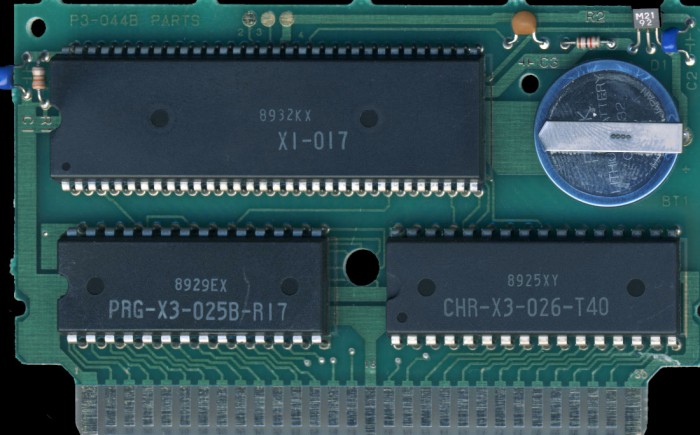

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8929 EX | 8929 | ||
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8925 XY | 8925 | ||
| NEC | X1-017 | Taito X1-017 | DIP-64 | 8932 KX | 8932 |
