Release Info
| Catalog ID | TFC-KHS-5500-18 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 28, 1988 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

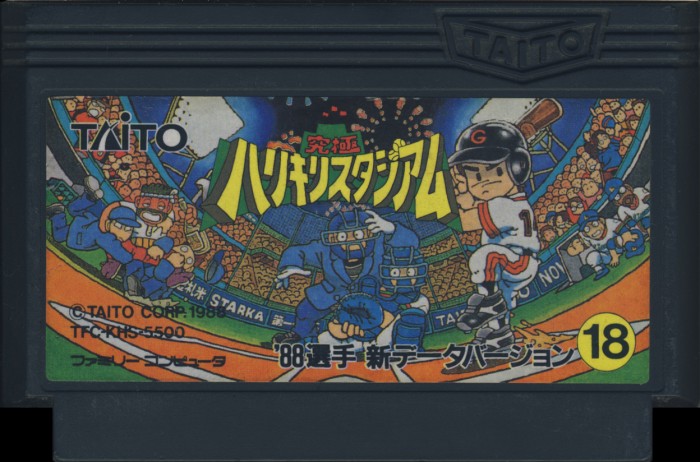

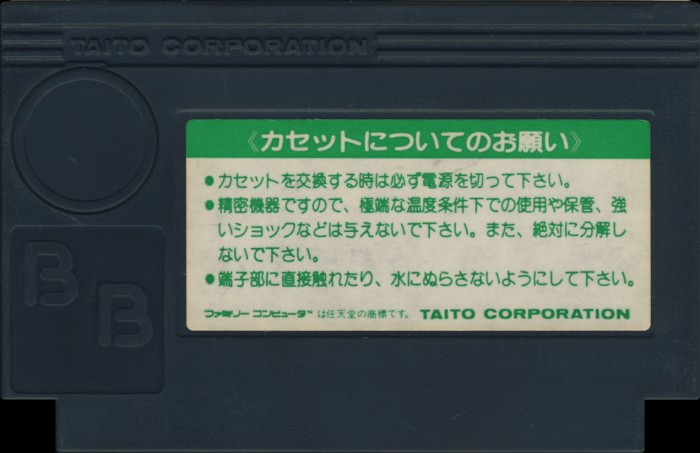

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / Fake Battery Door |
| Embossed Text | |
| Front Label ID | TFC-KHS-5500 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

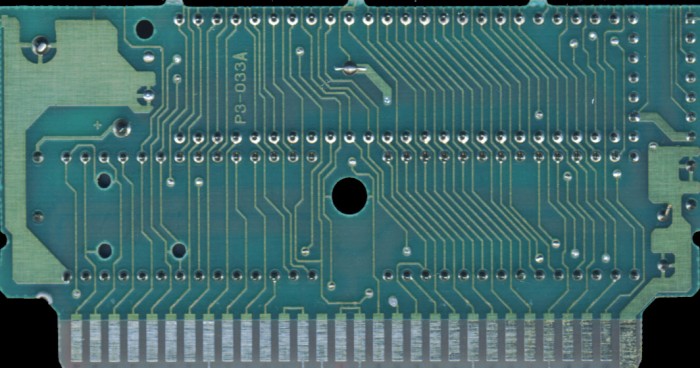

PCB Properties
| Name | P3-33A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8823 - 8910 (8) |
| Est First Run | June 1988 |
| PCB Class | TAITO-X1-005 |
| iNES Mapper | 80 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, X1-005 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PRG X3-022 | 128 KB | 6C438BB2 | 3 |
| CHR0 | CHR X3-021B | 128 KB | 3CB636A4 | 8 |
| N/A | ROMs Combined | 256 KB | D0E53454 | 3 |

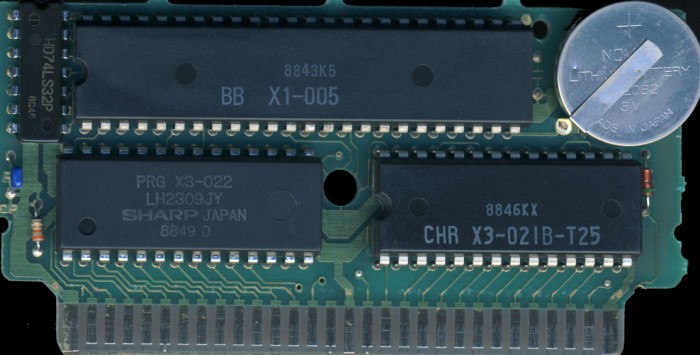

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2309 JY | Mask ROM 128 KB | DIP-28 | 8849 D | 8849 | ||
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8846 KX | 8846 | ||
| NEC | X1-005 | Taito X1-005 | DIP-48 | 8843 K5 | 8843 | BB | |
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 8G4 6 | 8830 |
