Release Info
| Catalog ID | TFC-BJ2-5900-35 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 22, 1991 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

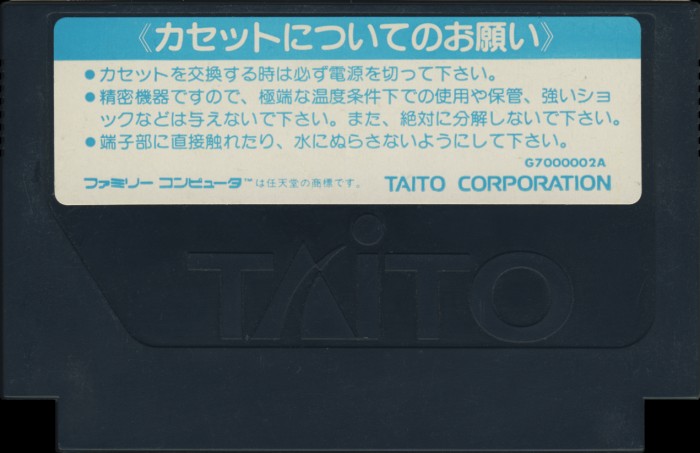

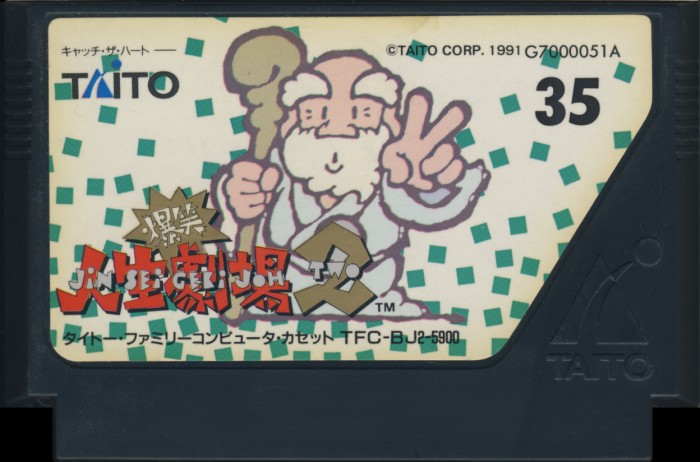

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-BJ2-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

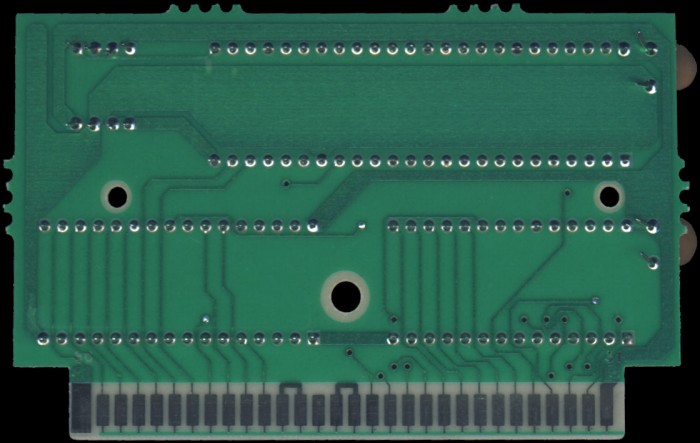

PCB Properties
| Name | J9100240A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 9107 - 9107 (2) |
| Est First Run | February 1991 |
| PCB Class | TAITO-X1-005 |
| iNES Mapper | 80 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | X1-005 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | C79-01 | 128 KB | 54163624 | 2 |
| CHR0 | C79-02 | 256 KB | 65142C2B | 2 |
| N/A | ROMs Combined | 384 KB | BC7B1D0F | 2 |

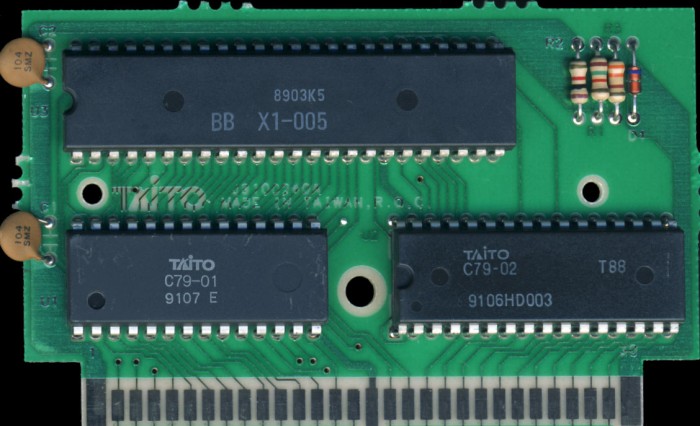

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9107 E | 9107 | |
| U2 | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 9106 HD003 | 9106 | |
| U3 | NEC | X1-005 | Taito X1-005 | DIP-48 | 8903 K5 | 8903 | BB |
