Release Info
| Catalog ID | TFC-TC-5300-09 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 10, 1986 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

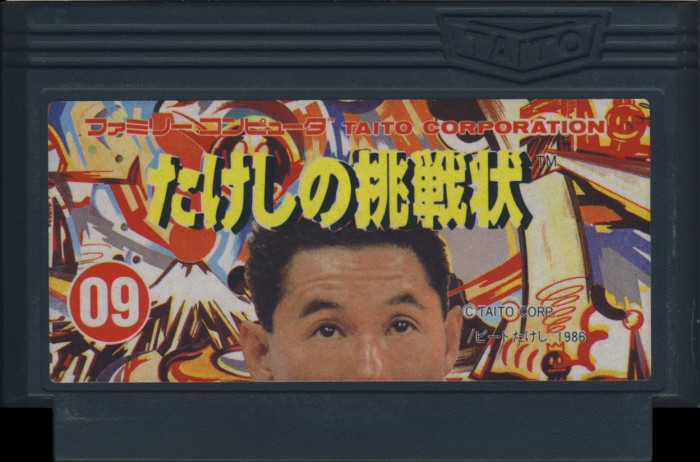

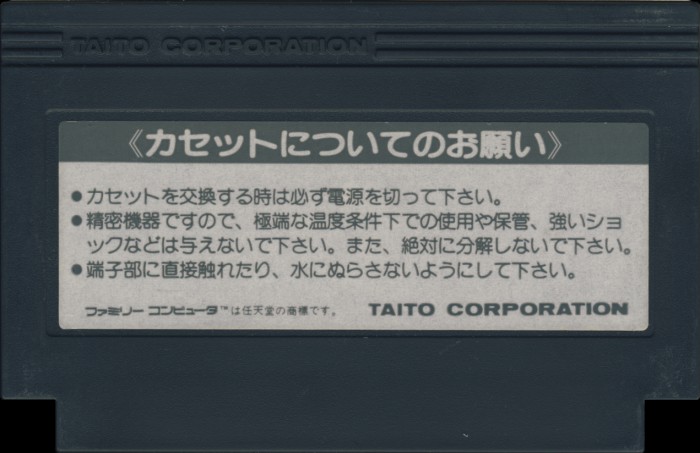

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / No Battery Door |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | P3-029B |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8645 |
| Est First Run | November 1986 |
| PCB Class | TAITO-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | X3-009 | 128 KB | DB196068 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | NEC | D23C1000C 155 | Mask ROM 128 KB | DIP-28 | 8645 KX | 8645 | |
| CH | NEC | D4364C | SRAM 8 KB | DIP-28 | 8637 BU020 | 8637 | |
| 161 | Hitachi | HD74LS161P | 74-161 Series | DIP-16 | 6J3 T | 8638 | |
| 32 | Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 6J1 8 | 8636 |
