Release Info
| Catalog ID | TFC-SI-4500-01 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 17, 1985 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

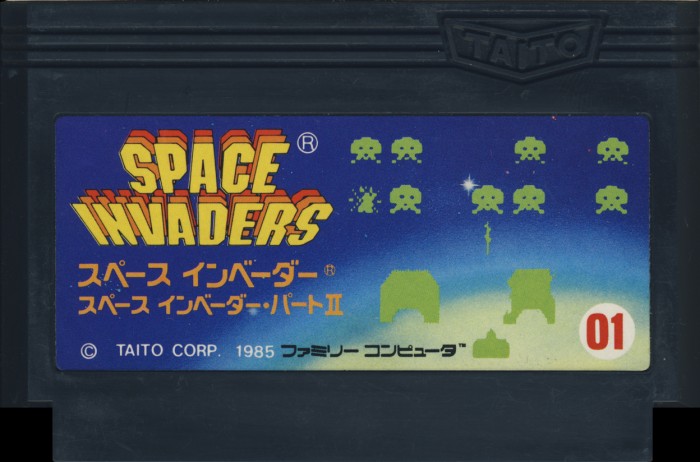

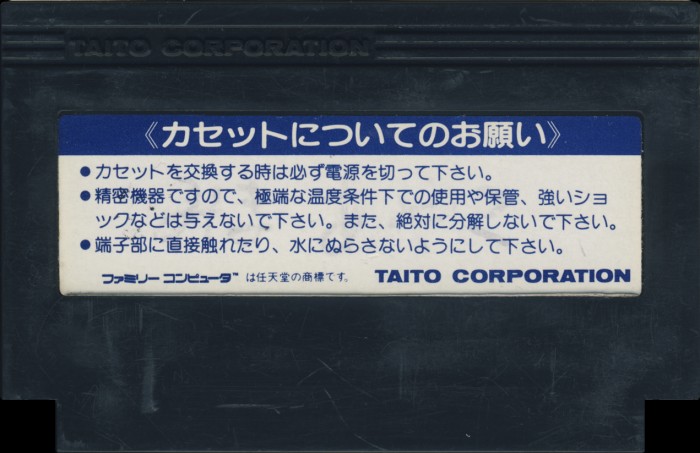

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 3 Screws |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

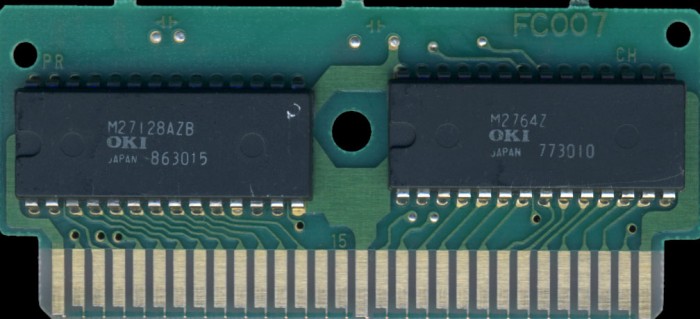

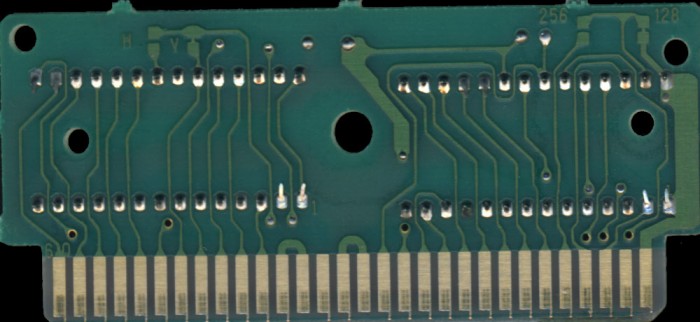

PCB Properties
| Name | FC007 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8822 - 8851 (2) |
| Est First Run | June 1988 |
| PCB Class | TAITO-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 50920B03 | 2 |
| CHR0 | Not Present | 8 KB | A1C6A8F4 | 2 |
| N/A | ROMs Combined | 24 KB | D9C093B1 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | OKI | M27128AZB | PROM 16 KB | DIP-28 | 86 3015 | 8822 | |
| CH | OKI | M2764Z | PROM 8 KB | DIP-28 | 77 3010 | 8727 |
