Release Info
| Catalog ID | IF-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 26, 1986 |
| Publisher | Irem |
| Developer | Home Data |
| Players | 1 |
| Peripherals | Famicom Controller |

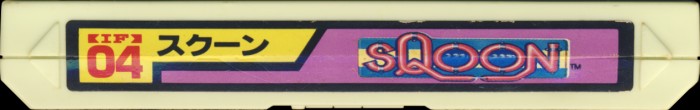

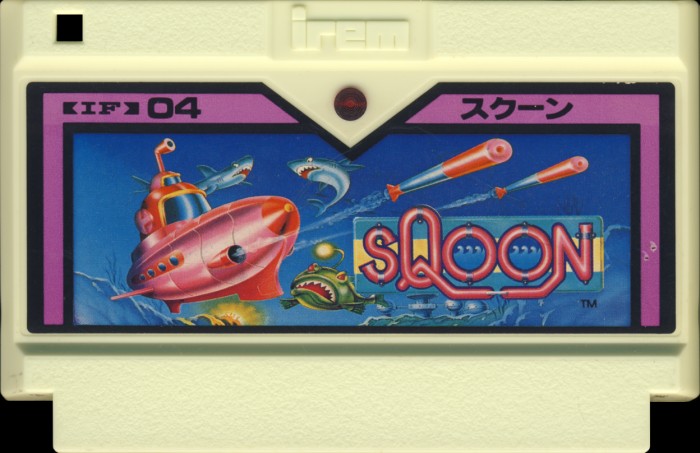

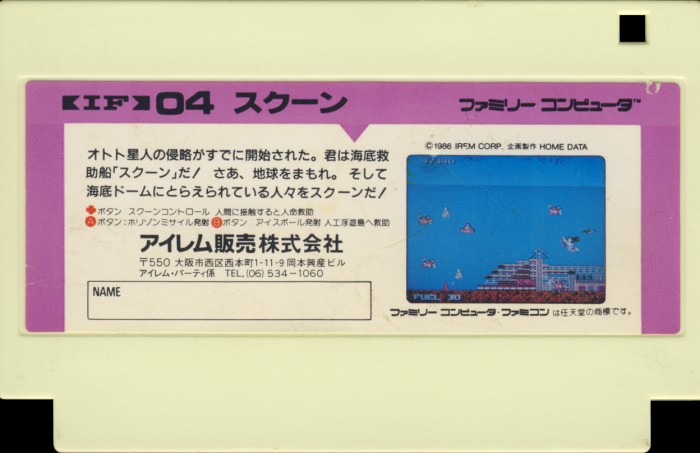

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Off White |
| Form Factor | Original w/ LED |
| Embossed Text | |
| Front Label ID | IF-04 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

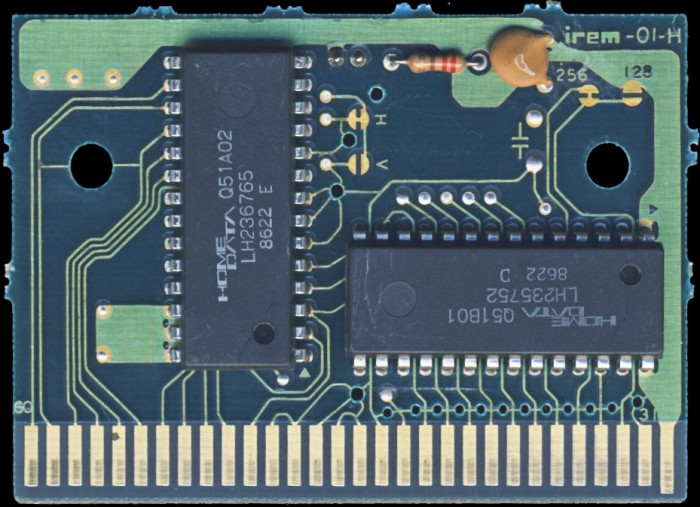

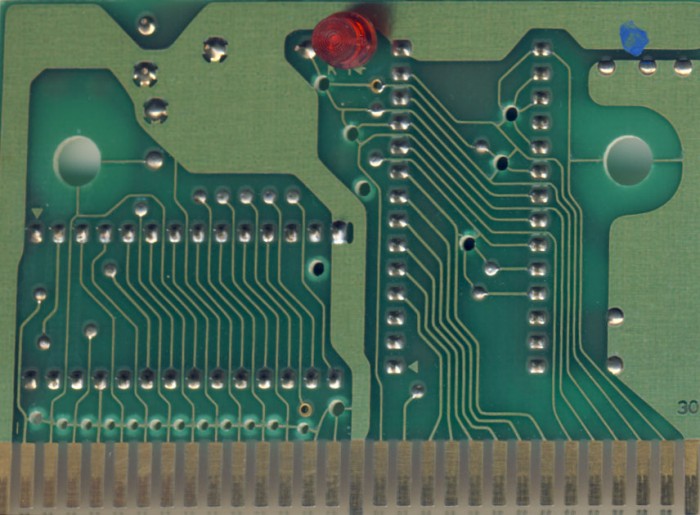

PCB Properties
| Name | IREM-01-H |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 8622 |
| Est First Run | June 1986 |
| PCB Class | IREM-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | C4482B58 | 1 |
| CHR0 | Not Present | 8 KB | 846C2BA4 | 1 |
| N/A | ROMs Combined | 40 KB | 4DFD949E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2357 52 | Mask ROM 32 KB | DIP-28 | 8622 D | 8622 | ||
| Sharp | LH2367 65 | Mask ROM 8 KB | DIP-28 | 8622 E | 8622 |
