Release Info
| Catalog ID | BA-DB2 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 12, 1988 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

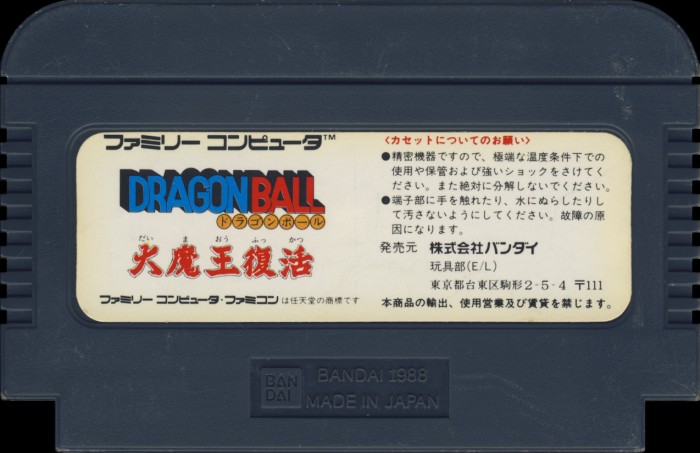

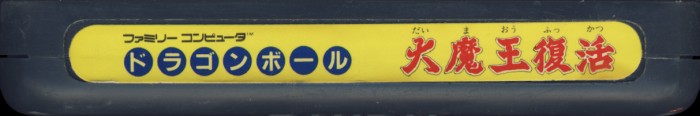

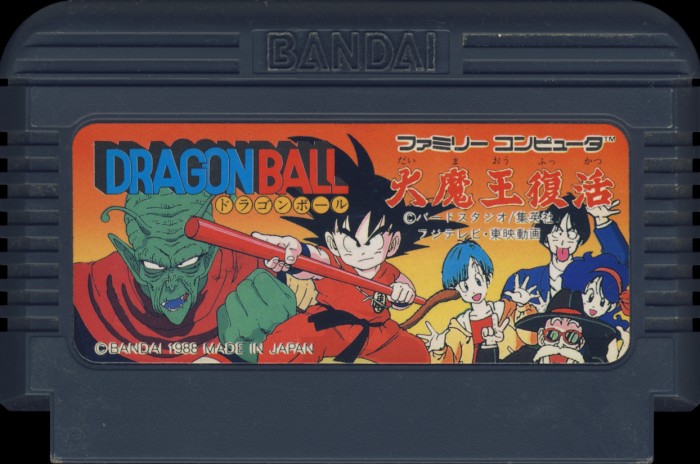

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

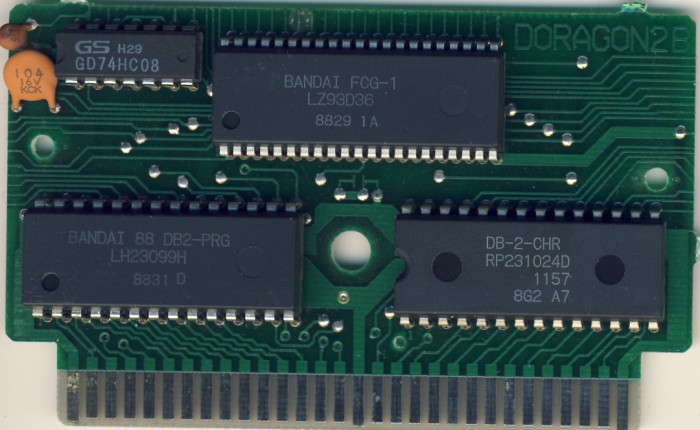

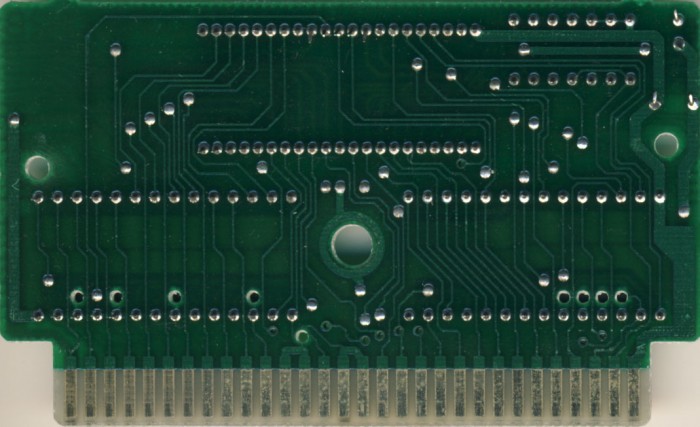

PCB Properties
| Name | DORAGON2B |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8831 - 8833 (4) |
| Est First Run | August 1988 |
| PCB Class | BANDAI-FCG-1 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx08, FCG-1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 88 DB2-PRG | 128 KB | 7FB799FD | 4 |
| CHR0 | DB-2-CHR | 128 KB | 5FE39059 | 4 |
| N/A | ROMs Combined | 256 KB | 33B899C9 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2309 9H | Mask ROM 128 KB | DIP-28 | 8831 D | 8831 | ||
| Ricoh | RP231024D 1157 | Mask ROM 128 KB | DIP-28 | 8G2 A7 | 8828 | ||
| Sharp | LZ93D36 | Bandai FCG-1 | DIP-42 | 8829 1 A | 8829 | ||
| GoldStar | GD74HC08 | 74-08 Series | DIP-14 | H29 | 8829 |
