Release Info
| Catalog ID | BA-MT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 21, 1991 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

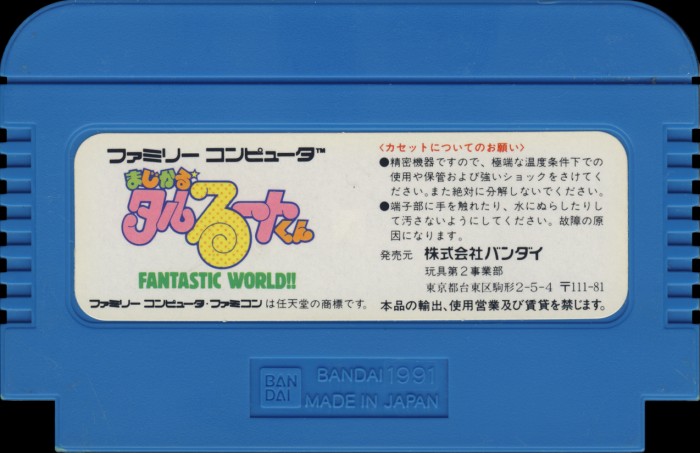

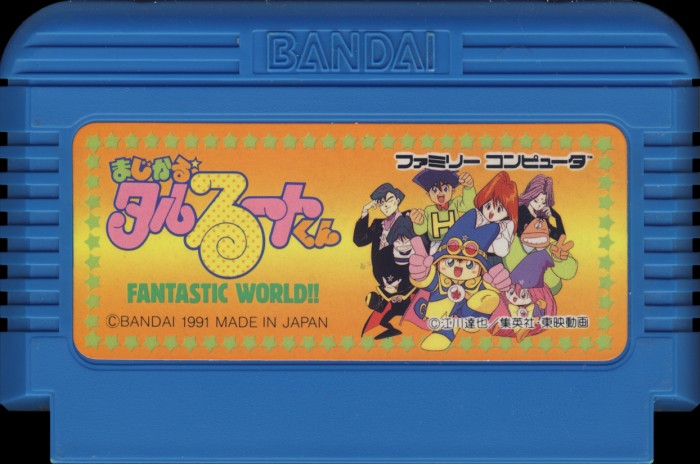

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Blue |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

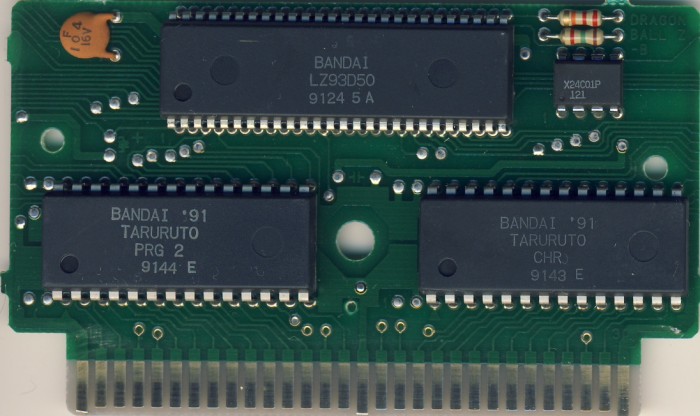

PCB Properties
| Name | DRAGON BALL Z-B |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9116 - 9144 (2) |
| Est First Run | April 1991 |
| PCB Class | BANDAI-LZ93D50+24C01 |
| iNES Mapper | 159 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 24C01, FCG-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI '91 TARURUTO PRG 2 | 128 KB | E1404F15 | 1 |
| CHR0 | BANDAI '91 TARURUTO CHR | 128 KB | 75BFB291 | 2 |
| N/A | ROMs Combined | 256 KB | DCB972CE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9144 E | 9144 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9143 E | 9143 | ||
| Sharp | LZ93D50 | Bandai FCG-3 | DIP-52 | 9124 5 A | 9124 | ||
| Xicor | X24C01P | Serial EEPROM 1 kb | DIP-8 | 121 | 9121 |
