Release Info
| Catalog ID | FT-01 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 12, 1986 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

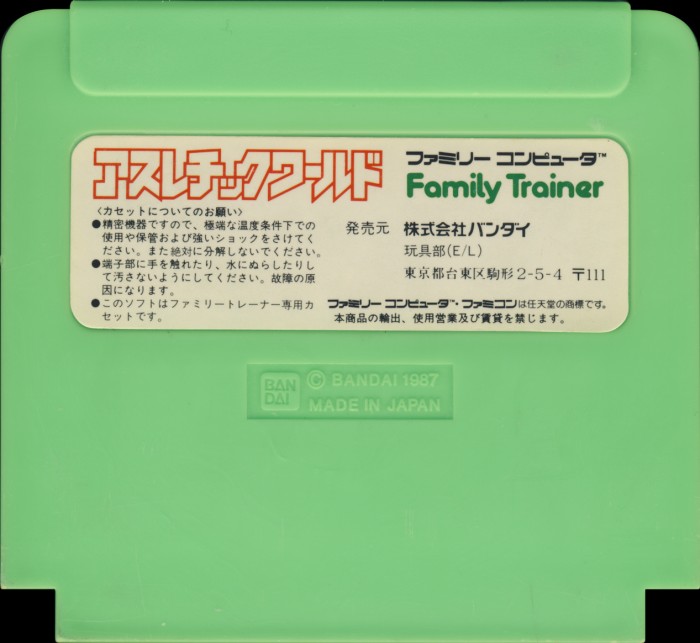

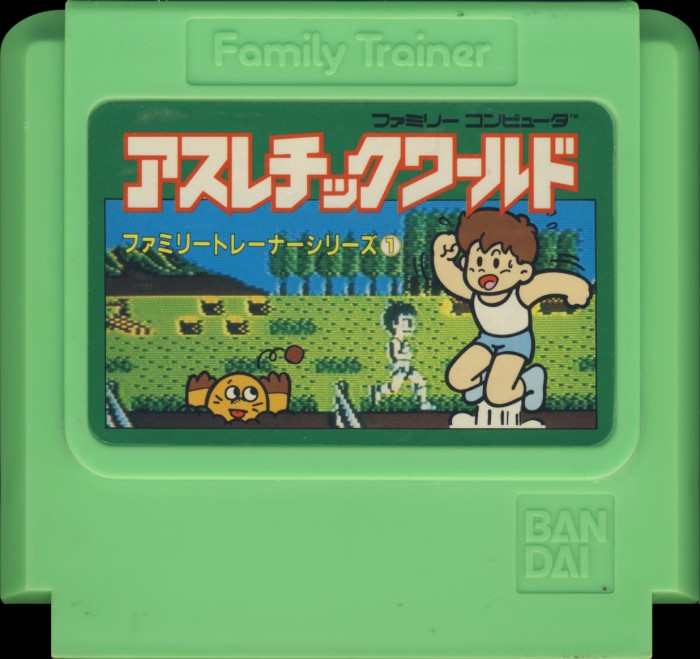

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Light Green |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

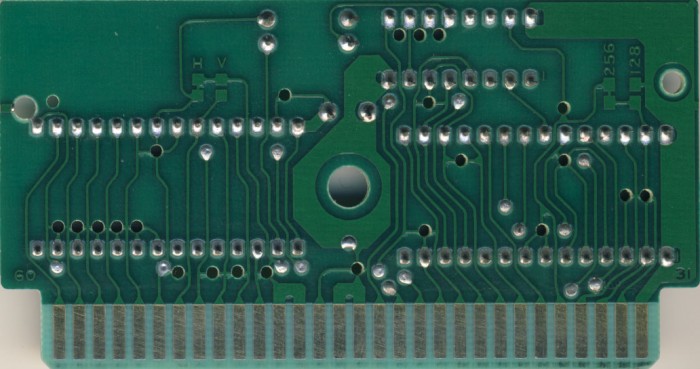

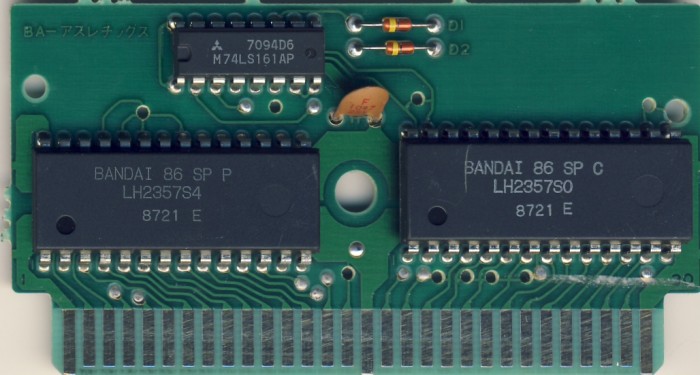

PCB Properties
| Name | BA-アスレチックス |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8644 - 8808 (3) |
| Est First Run | November 1986 |
| PCB Class | BANDAI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 86 SP P | 32 KB | 8C8FA83B | 2 |
| CHR0 | BANDAI 86 SP C | 32 KB | 8ADAECB2 | 3 |
| N/A | ROMs Combined | 64 KB | 60AD090A | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2357 S4 | Mask ROM 32 KB | DIP-28 | 8721 E | 8721 | ||
| Sharp | LH2357 S0 | Mask ROM 32 KB | DIP-28 | 8721 E | 8721 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 709 4D6 | 8709 |
