Release Info
| Catalog ID | JF-08 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 26, 1986 |
| Publisher | Jaleco |
| Developer | Sega |
| Players | 2 |
| Peripherals | Famicom Controller |

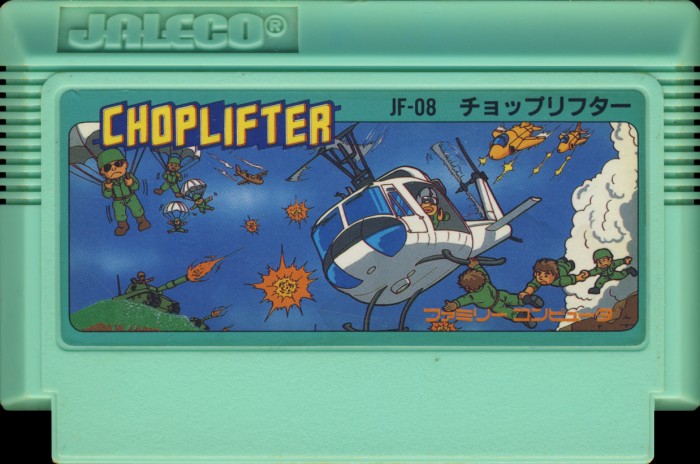

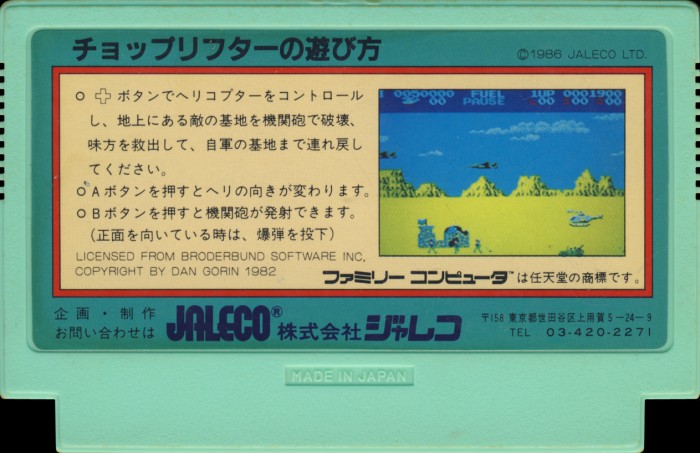

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Aqua |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-08 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

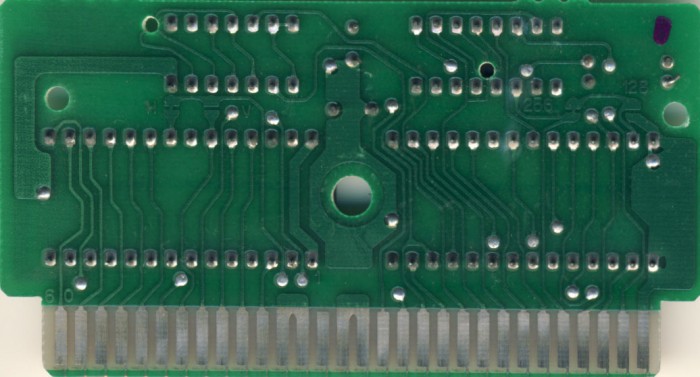

PCB Properties
| Name | JF-08 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8622 - 8623 (2) |
| Est First Run | June 1986 |
| PCB Class | JALECO-JF-08 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | D6F73886 | 2 |
| CHR0 | Not Present | 16 KB | D5AAC946 | 2 |
| N/A | ROMs Combined | 48 KB | 883454EA | 2 |

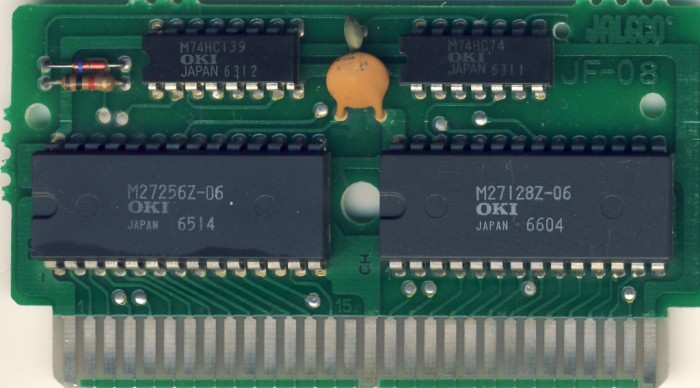

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | OKI | M27256Z 06 | PROM 32 KB | DIP-28 | 65 14 | 8618 | |
| CH | OKI | M27128Z 06 | PROM 16 KB | DIP-28 | 66 04 | 8622 | |
| OKI | M74HC139 | 74-139 Series | DIP-16 | 63 12 | 8609 | ||
| OKI | M74HC74 | 74-74 Series | DIP-14 | 63 11 | 8609 |
