Release Info
| Catalog ID | JF-19 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 10, 1988 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

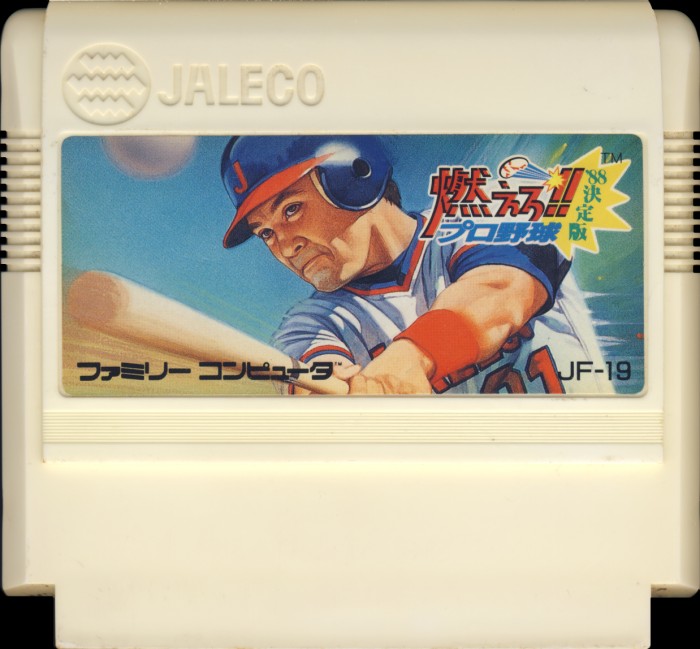

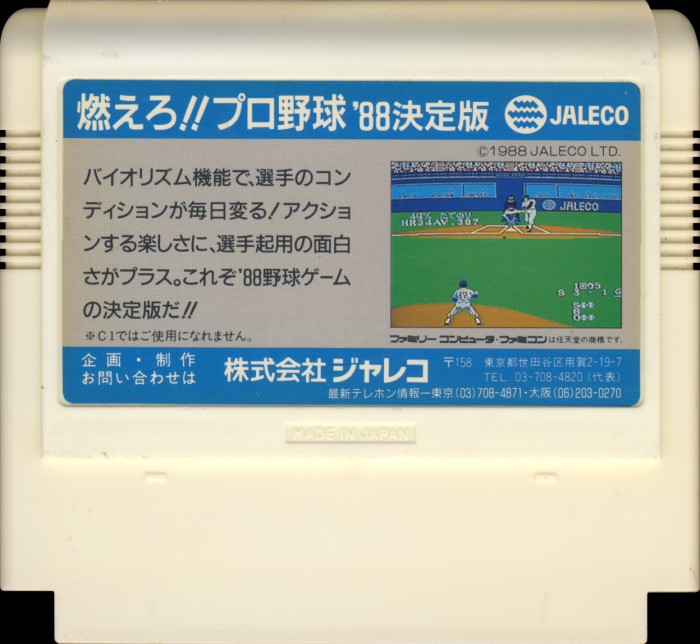

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | White |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-19 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

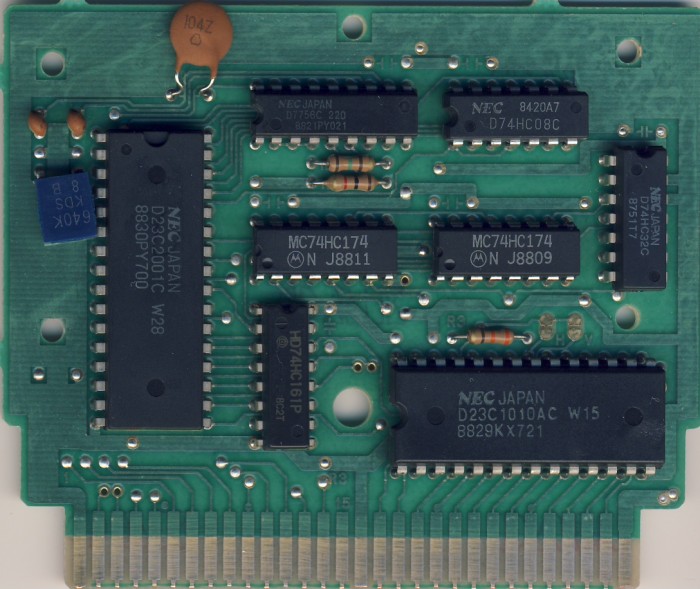

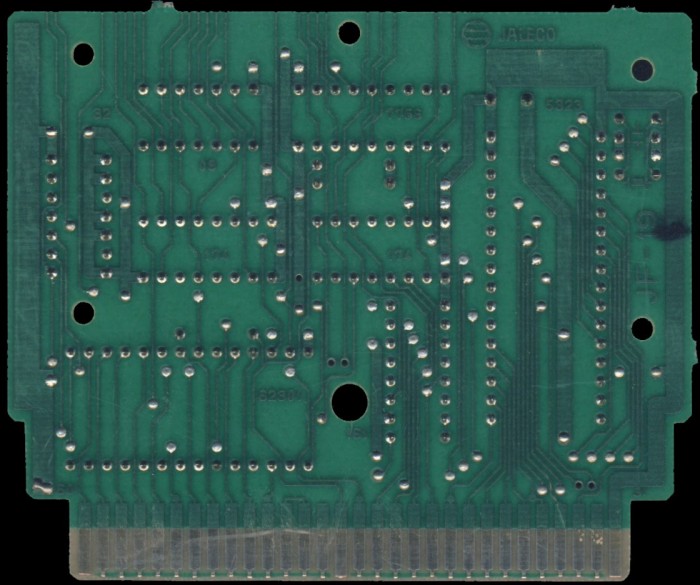

PCB Properties
| Name | JF-19 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8829 - 8840 (5) |
| Est First Run | July 1988 |
| PCB Class | JALECO-JF-19 |
| iNES Mapper | 92 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx08, 74xx161, 74xx174, 74xx174, 74xx32, D7756C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 9F50A100 | 5 |
| CHR0 | Not Present | 128 KB | F20E819F | 5 |
| N/A | ROMs Combined | 384 KB | B297B5E7 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| 5323 | NEC | D23C2001C W28 | Mask ROM 256 KB | DIP-32 | 8830 PY700 | 8830 | |
| 6230 | NEC | D23C1010AC W15 | Mask ROM 128 KB | DIP-28 | 8829 KX721 | 8829 | |
| 7756 | NEC | D7756C 220 | ADPCM Speech Chip 256 kb | DIP-18 | 8821 PY021 | 8821 | |
| 161 | Hitachi | HD74HC161P | 74-161 Series | DIP-16 | 8C2 T | 8811 | |
| 174 | Motorola | MC74HC174 | 74-174 Series | DIP-16 | 8811 N J | 8811 | |
| 174 | Motorola | MC74HC174 | 74-174 Series | DIP-16 | 8809 N J | 8809 | |
| 32 | NEC | D74HC32C | 74-32 Series | DIP-14 | 8751 T7 | 8751 | |
| 08 | NEC | D74HC08C | 74-08 Series | DIP-14 | 8420 A7 | 8420 |
