Release Info
| Catalog ID | NES-ZL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

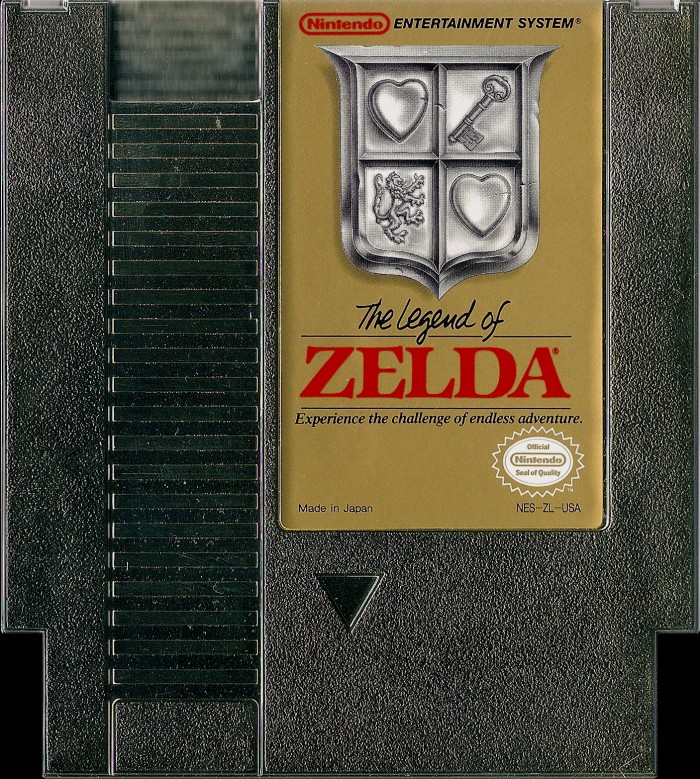

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Gold |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZL-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8723 - 9229 (7) |
| Est First Run | June 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZL-1 PRG | 128 KB | EAF7ED72 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J500 | Mask ROM 128 KB | DIP-28 | 9018 EAI | 9018 | |
| U2 CHR RAM | Samsung | KM6264AL-10L | SRAM 8 KB | DIP-28 | 014 N | 9014 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9014 3 CA | 9014 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 8949 B3059 | 8949 | |
| U5 W-RAM | Fujitsu | 8464A-15L | SRAM 8 KB | DIP-28 | 9003 KT14 | 9003 | L |
