Release Info
| Catalog ID | HSP-09 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 22, 1987 |
| Publisher | ASCII |
| Developer | Sir-Tech Software |
| Players | 1 |
| Peripherals | ,Famicom Controller |

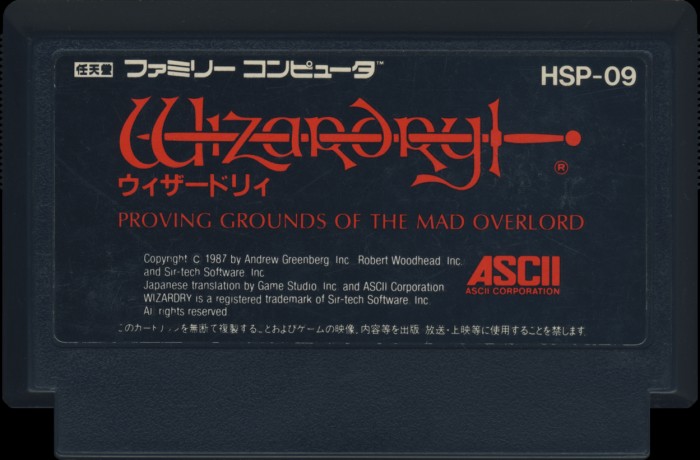

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-09 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

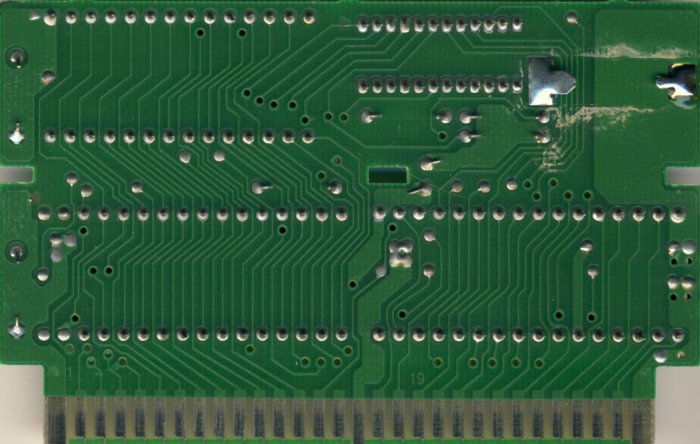

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8749 - 8849 (3) |
| Est First Run | December 1987 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-09-0 PRG | 128 KB | 343E9146 | 3 |
| CHR0 | HSP-09-0 CHR | 128 KB | F711D19D | 3 |
| N/A | ROMs Combined | 256 KB | 498187B6 | 3 |

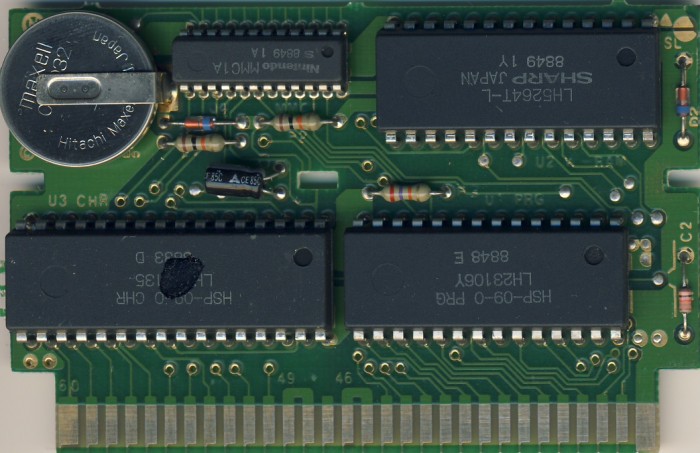

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2310 6Y | Mask ROM 128 KB | DIP-28 | 8848 E | 8848 | |
| U2 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8849 1 Y | 8849 | |
| U3 CHR | Sharp | LH2311 35 | Mask ROM 128 KB | DIP-32 | 8833 D | 8833 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8849 1 A | 8849 |
