Release Info
| Catalog ID | TFC-8A |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 15, 1991 |
| Publisher | Takara |
| Developer | Takara |
| Players | 1 |
| Peripherals | Famicom Controller |

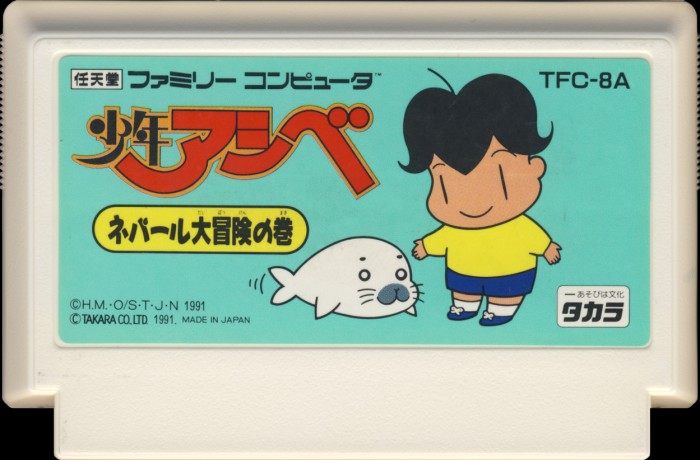

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TFC-8A |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

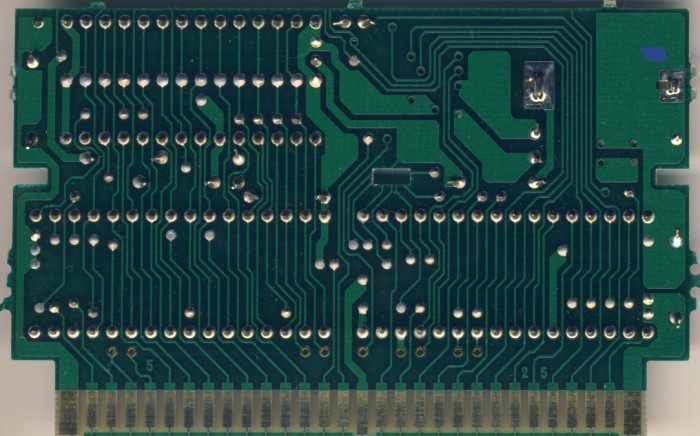

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9144 |
| Est First Run | November 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TFC-8A-0 PRG | 128 KB | F225E3F5 | 1 |
| CHR0 | TFC-8A-0 CHR | 128 KB | FCED4D2B | 1 |
| N/A | ROMs Combined | 256 KB | 31C7AD13 | 1 |

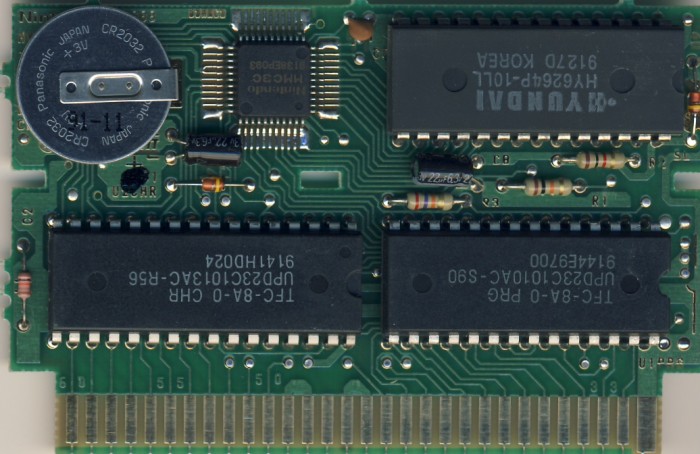

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S90 | Mask ROM 128 KB | DIP-28 | 9144 E9700 | 9144 | |
| U2 CHR | NEC | UPD23C1013AC R56 | Mask ROM 128 KB | DIP-32 | 9141 HD024 | 9141 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9138 EP093 | 9138 | |
| U4 W-RAM | Hyundai | HY6264P-10LL | SRAM 8 KB | DIP-28 | 9127 D | 9127 |
