Release Info
| Catalog ID | HFC-BM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 19, 1985 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |

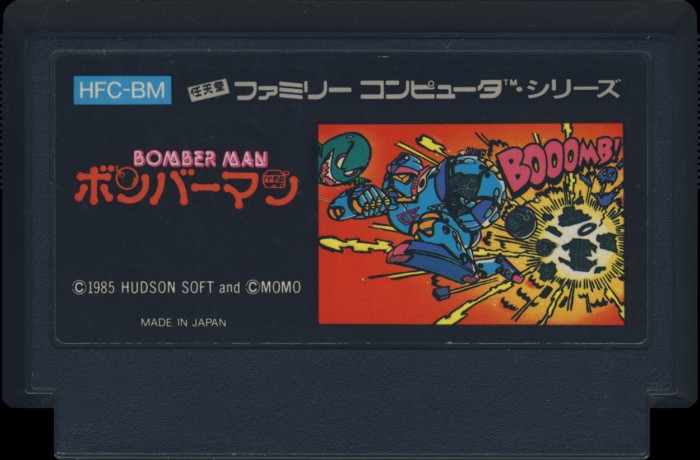

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HFC-BM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 04 |

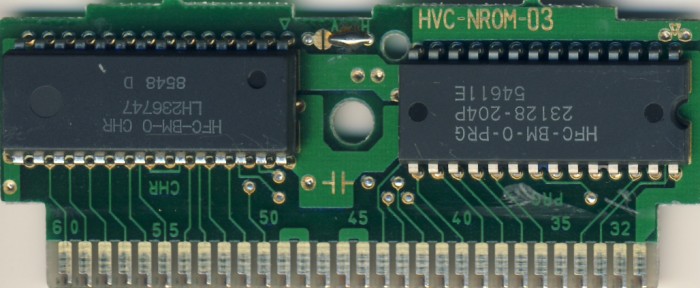

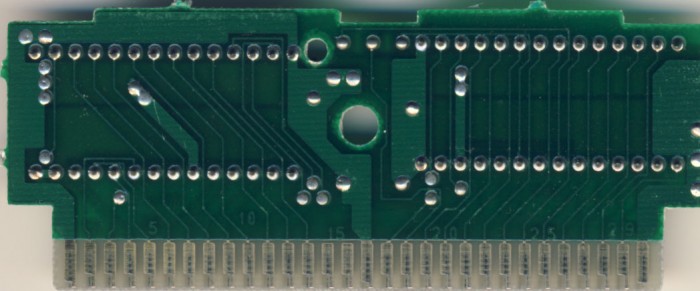

PCB Properties
| Name | HVC-NROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8548 - 8552 (3) |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HFC-BM-0 PRG | 16 KB | 9684657F | 5 |
| CHR0 | HFC-BM-0 CHR | 8 KB | A775822E | 5 |
| N/A | ROMs Combined | 24 KB | F2FC8212 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Mitsubishi | 23128 M5M | Mask ROM 16 KB | DIP-28 | 546 11E | 8546 | |
| CHR | Sharp | LH2367 47 | Mask ROM 8 KB | DIP-28 | 8548 D | 8548 |
