Release Info
| Catalog ID | NBF-SE (02) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 15, 1986 |
| Publisher | Nichibutsu |
| Developer | Nichibutsu |
| Players | 2 |
| Peripherals | Famicom Controller |

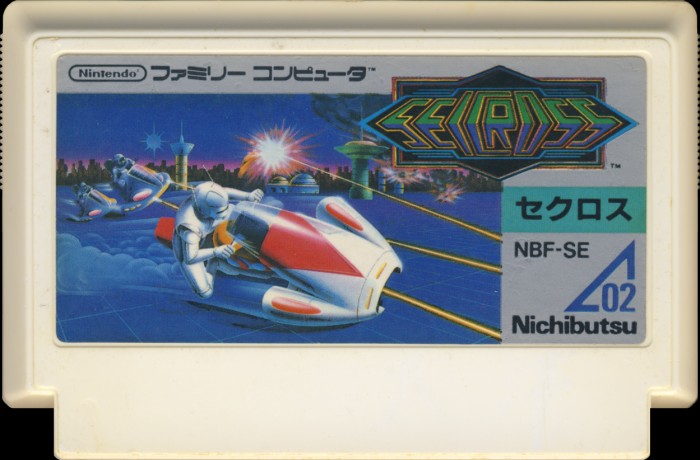

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NBF-SE |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

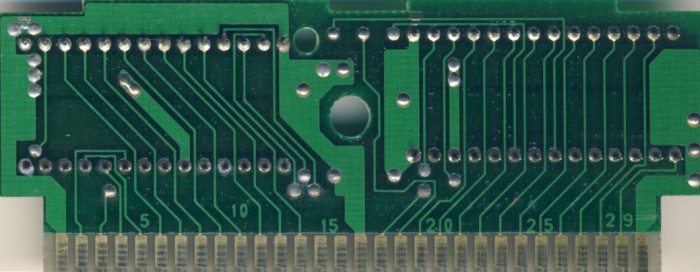

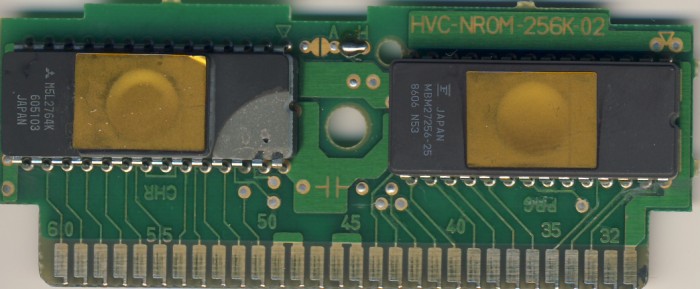

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8606 - 8616 (2) |
| Est First Run | February 1986 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | F7B2DBC7 | 1 |
| CHR0 | Not Present | 8 KB | DBA2082A | 2 |
| N/A | ROMs Combined | 40 KB | 90600B85 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Fujitsu | MBM27256-25 | UV EPROM 32 KB | DIP-28 | 8606 N53 | 8606 | |
| CHR | Mitsubishi | M5L2764K | UV EPROM 8 KB | DIP-28 | 605 103 | 8605 |
