Release Info
| Catalog ID | NBF-MM (01) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 19, 1986 |
| Publisher | Nichibutsu |
| Developer | Nichibutsu |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NBF-MM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |

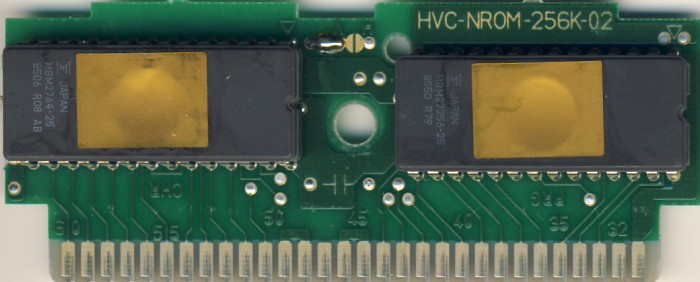

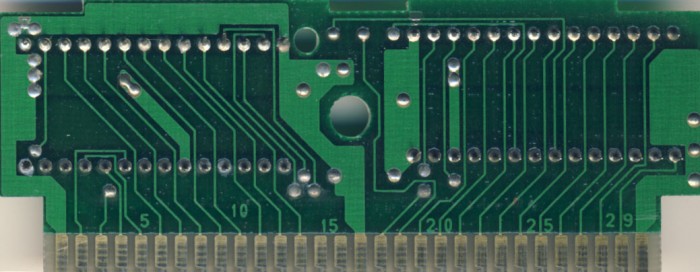

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8550 - 8609 (3) |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 2389A6B3 | 3 |
| CHR0 | Not Present | 8 KB | FA662B89 | 3 |
| N/A | ROMs Combined | 40 KB | 5E345B6D | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Fujitsu | MBM27256-25 | UV EPROM 32 KB | DIP-28 | 8550 R79 | 8550 | |
| CHR | Fujitsu | MBM2764-25 | UV EPROM 8 KB | DIP-28 | 8506 R08 | 8506 | AB |
