Release Info
| Catalog ID |
CAP-2V |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
April 5, 1991 |
| Publisher |
Capcom |
| Developer |
Capcom |
| Players |
1 |
| Peripherals |
Famicom Controller |

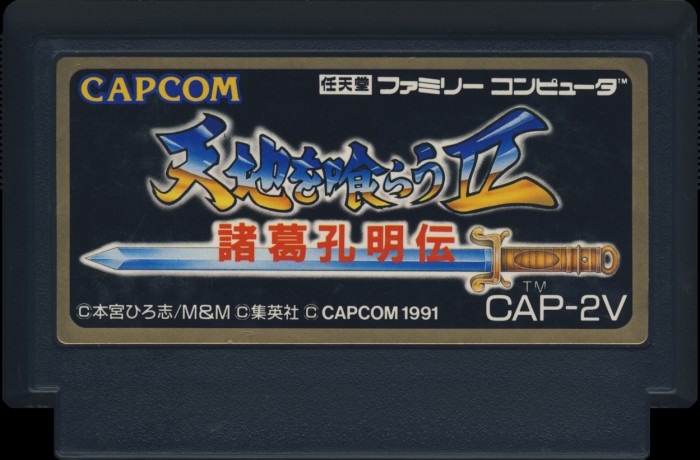

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CAP-2V |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-TNROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9108 - 9109 (2) |
| Est First Run |
February 1991 |
| PCB Class |
HVC-TNROM |
| iNES Mapper |
4 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC3B |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CAP-2V-0 PRG |
512 KB |
CB32E243 |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH534J
15
|
Mask ROM
512 KB
|
DIP-32 |
9109
D
|
9109 |
|
| U2 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
9040
MD
|
9040 |
|
| U3 MMC3 |
Sharp |
MMC3B
|
Nintendo MMC3
|
TQFP-44 |
9103
7 DB
|
9103 |
|
| U4 W-RAM |
Sony |
CXK5864PN-15LL
|
SRAM
8 KB
|
DIP-28 |
0F
23E
|
9022 |
|
