Release Info
| Catalog ID | CAP-EZ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 7, 1990 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Famicom Controller |

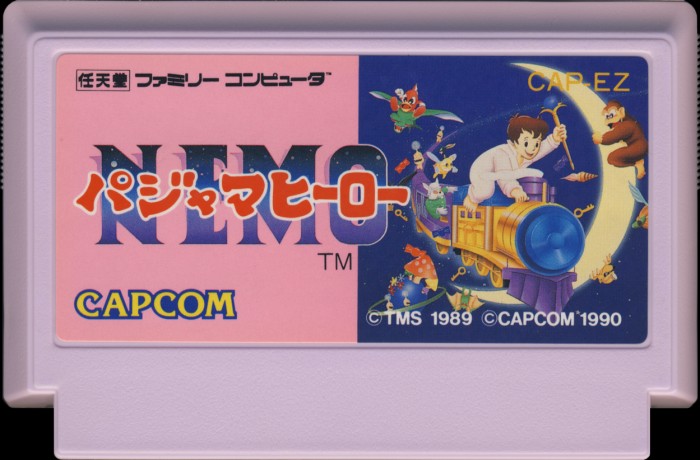

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Seashell |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-EZ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

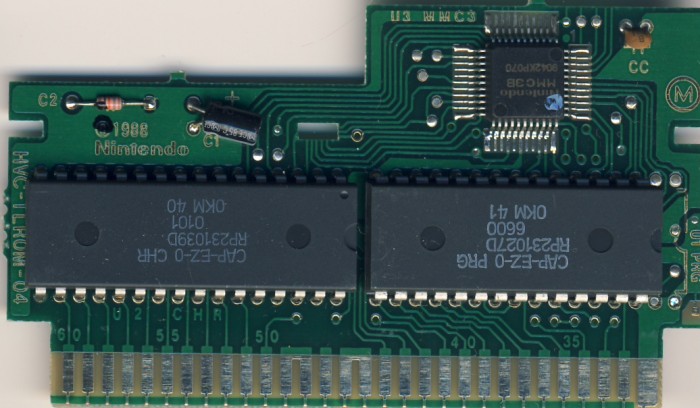

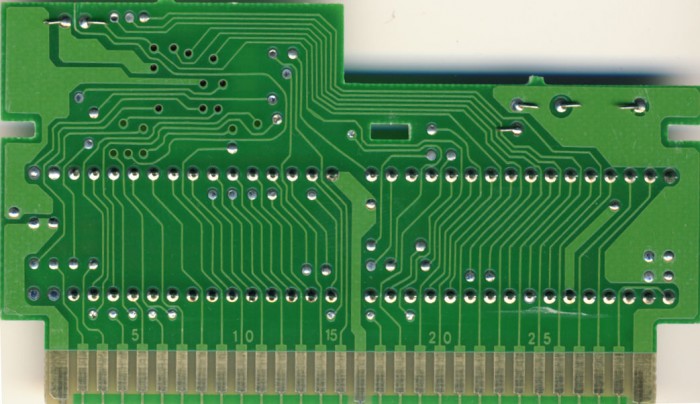

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9042 |
| Est First Run | October 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-EZ-0 PRG | 128 KB | 5EF7F6E2 | 1 |
| CHR0 | CAP-EZ-0 CHR | 128 KB | 4B19BDFB | 1 |
| N/A | ROMs Combined | 256 KB | 3BE91A23 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6600 | Mask ROM 128 KB | DIP-28 | 0KM 41 | 9041 | |
| U2 CHR | Ricoh | RP231039D 0101 | Mask ROM 128 KB | DIP-32 | 0KM 40 | 9041 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9042 KP070 | 9042 |
