Release Info
| Catalog ID | HVC-SM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 13, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

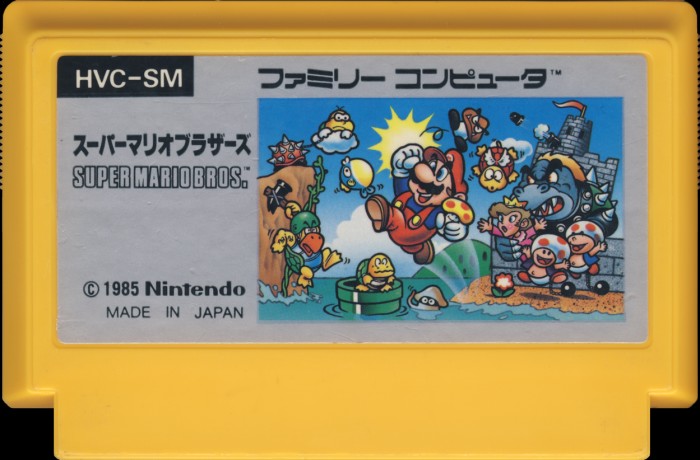

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-SM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

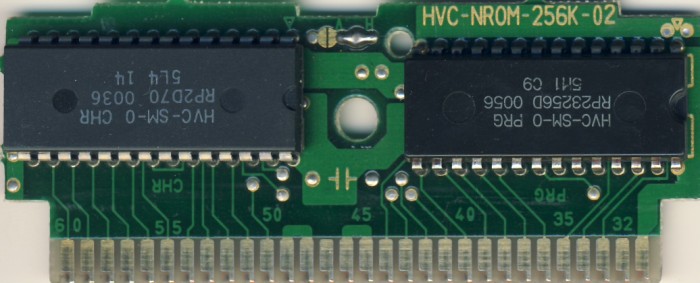

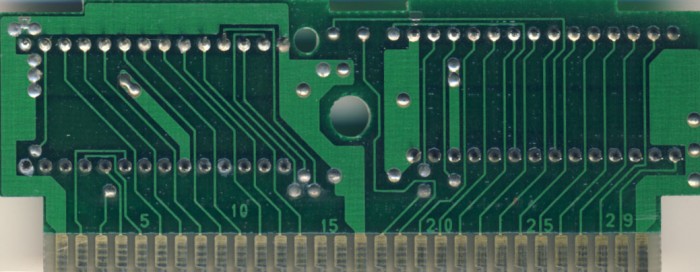

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8538 - 8614 (5) |
| Est First Run | September 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-SM-0 PRG | 32 KB | 5CF548D3 | 15 |
| CHR0 | HVC-SM-0 CHR | 8 KB | 867B51AD | 27 |
| N/A | ROMs Combined | 40 KB | D445F698 | 15 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256D 0056 | Mask ROM 32 KB | DIP-28 | 5M1 C9 | 8549 | |
| CHR | Ricoh | RP2D70 0036 | Mask ROM 8 KB | DIP-28 | 5L4 14 | 8548 |
