Release Info
| Catalog ID | HVC-VU |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 27, 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

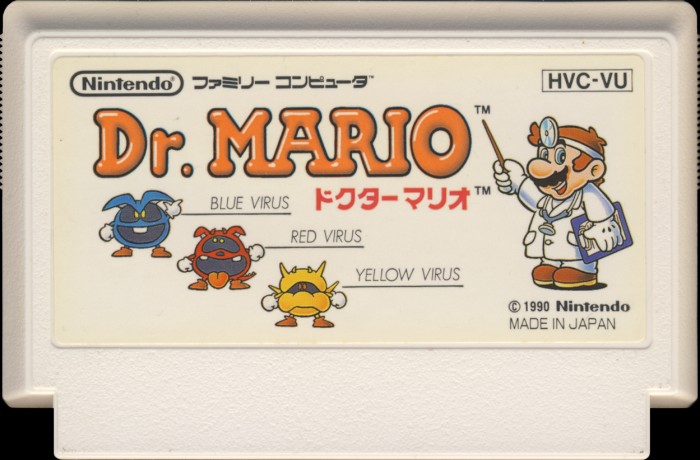

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-VU |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

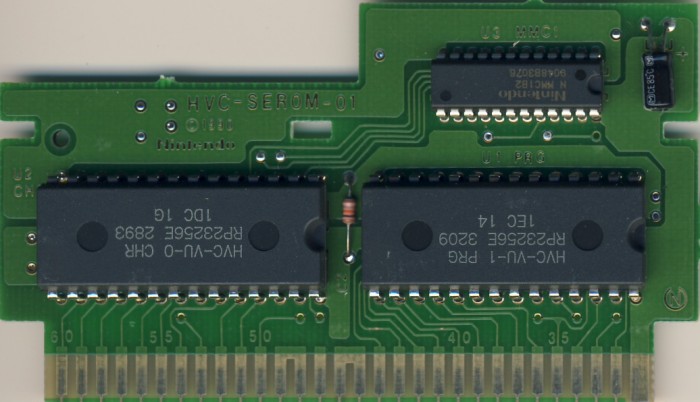

PCB Properties
| Name | HVC-SEROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9022 - 9239 (10) |
| Est First Run | June 1990 |
| PCB Class | HVC-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-VU-1 PRG | 32 KB | 4D72A3E4 | 5 |
| CHR0 | HVC-VU-0 CHR | 32 KB | 064D4AB3 | 21 |
| N/A | ROMs Combined | 64 KB | DE581355 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3209 | Mask ROM 32 KB | DIP-28 | 1EC 14 | 9118 | |
| U2 CHR | Ricoh | RP23256E 2893 | Mask ROM 32 KB | DIP-28 | 1DC 1G | 9114 | |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9048 B3076 | 9048 |
