Release Info
| Catalog ID | HSP-11 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 15, 1988 |
| Publisher | ASCII |
| Developer | ASCII |
| Players | 2 |
| Peripherals | ,Famicom Controller |

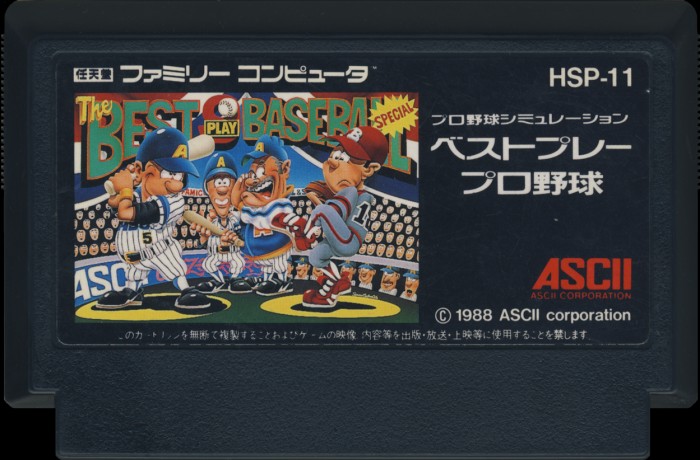

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-11 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

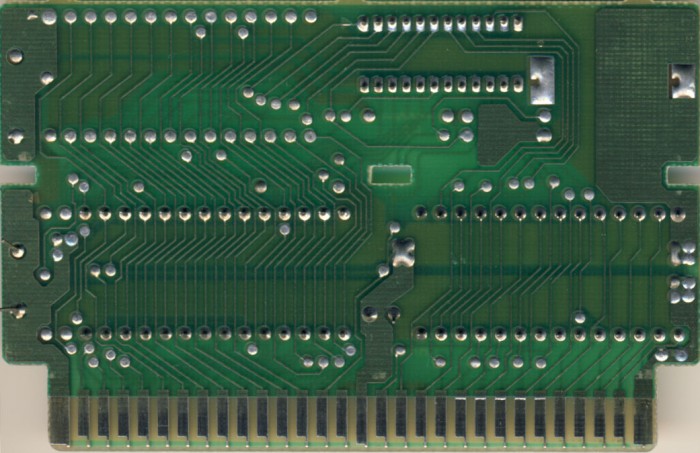

PCB Properties
| Name | HVC-SJROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8827 - 8848 (2) |
| Est First Run | July 1988 |
| PCB Class | HVC-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-11-0 PRG | 128 KB | F79D684A | 1 |
| CHR0 | HSP-11-0 CHR | 32 KB | 13DE672A | 2 |
| N/A | ROMs Combined | 160 KB | 3BBFF3A6 | 1 |

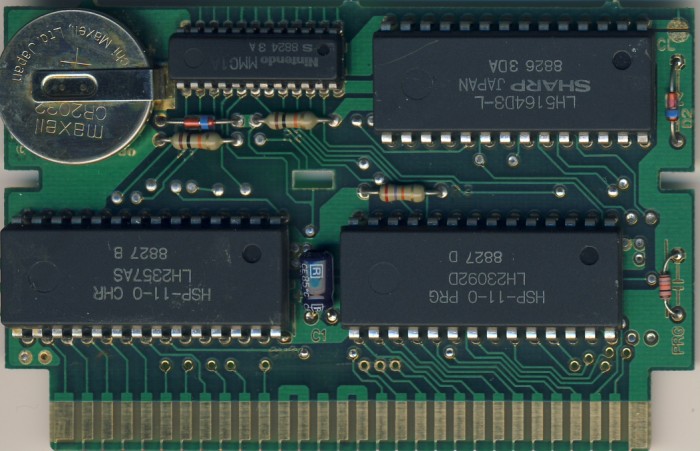

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2309 2D | Mask ROM 128 KB | DIP-28 | 8827 D | 8827 | |
| CHR | Sharp | LH2357 AS | Mask ROM 32 KB | DIP-28 | 8827 B | 8827 | |
| MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8824 3 A | 8824 | |
| W-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8826 3 DA | 8826 |
