Release Info
| Catalog ID |
NMK-ER |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
July 15, 1988 |
| Publisher |
Jaleco |
| Developer |
Rare |
| Players |
1 |
| Peripherals |
Famicom Controller |

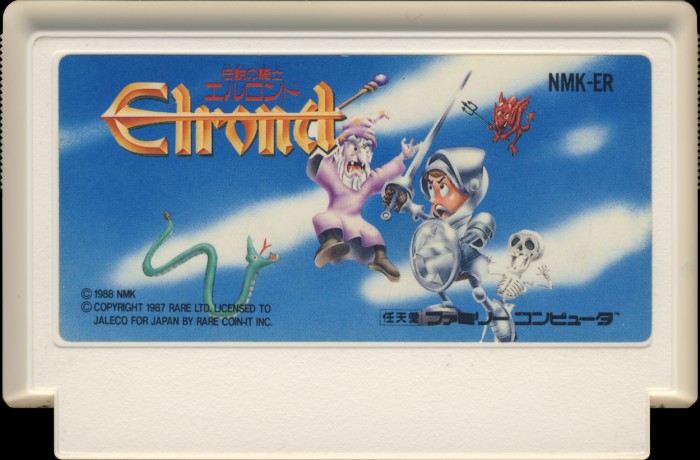

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
White |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
NMK-ER |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-AMROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8826 |
| Est First Run |
June 1988 |
| PCB Class |
HVC-AMROM |
| iNES Mapper |
7 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
NMK-ER-0 PRG |
128 KB |
A72FDE03 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG-ROM |
Sharp |
LH2309
3L
|
Mask ROM
128 KB
|
DIP-28 |
8826
E
|
8826 |
|
| U2 CHR-RAM |
Sharp |
LH5264B-18
|
SRAM
8 KB
|
DIP-28 |
8818
5 A
|
8818 |
|
| U3 HC161 |
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
8824
CA
|
8824 |
|
