Release Info
| Catalog ID | MAM-OQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 31, 1991 |
| Publisher | M&M |
| Developer | Advance Communication |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | MAM-OQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

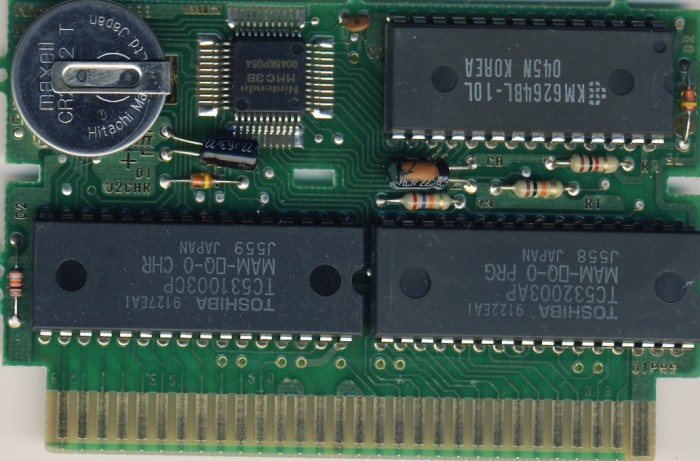

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 |
| Est First Run | July 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MAM-OQ-0 PRG | 256 KB | A524AE9B | 1 |
| CHR0 | MAM-OQ-0 CHR | 128 KB | 5445086E | 1 |
| N/A | ROMs Combined | 384 KB | 4582F22E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC532003AP J558 | Mask ROM 256 KB | DIP-32 | 9122 EAI | 9122 | |
| U2 CHR | Toshiba | TC531003CP J559 | Mask ROM 128 KB | DIP-32 | 9127 EAI | 9127 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9046 KP054 | 9046 | |
| U4 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 045 N | 9045 |
