Release Info
| Catalog ID | SHI-2G |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 25, 1989 |
| Publisher | Shinsei |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

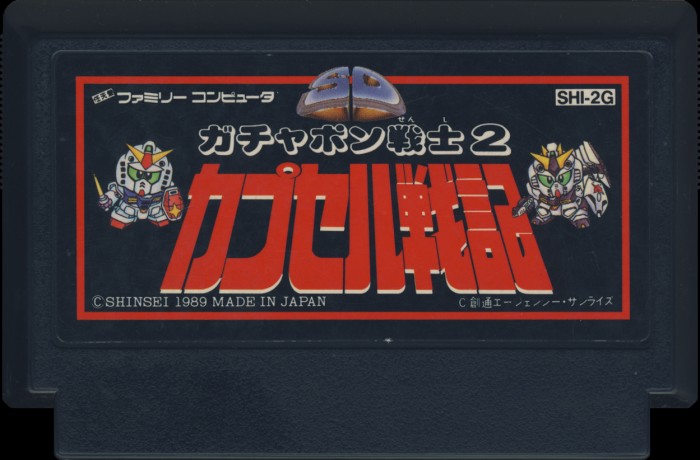

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-2G |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

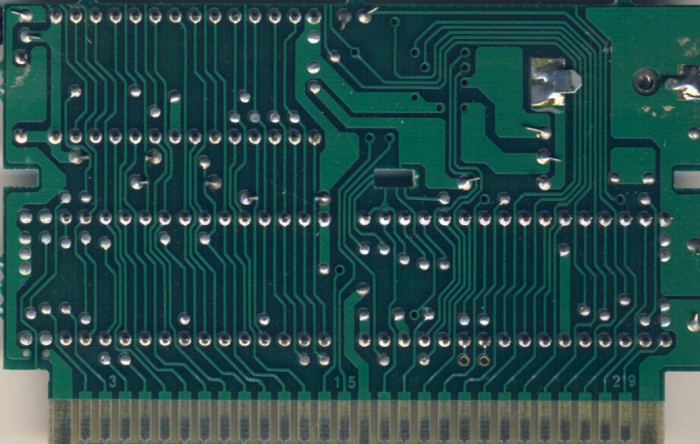

PCB Properties
| Name | HVC-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8920 - 9013 (6) |
| Est First Run | May 1989 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-2G-0 PRG | 128 KB | 46DC6E57 | 6 |
| CHR0 | SHI-2G-0 CHR | 128 KB | 520BE776 | 6 |
| N/A | ROMs Combined | 256 KB | A2F713C0 | 6 |

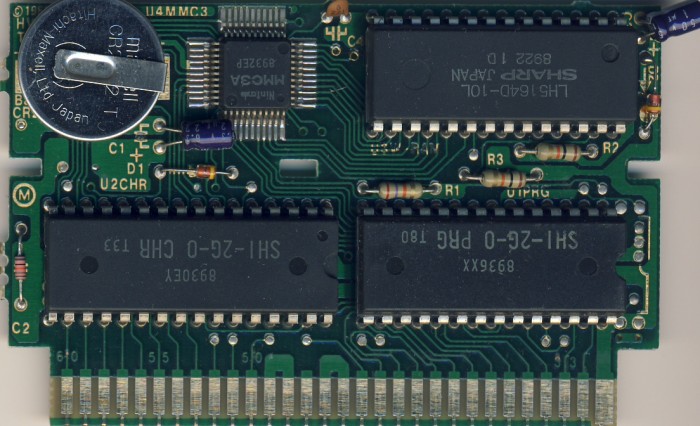

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8936 XX | 8936 | |
| U2 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8930 EY | 8930 | |
| U3 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 8922 1 D | 8922 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8932 EP | 8932 |
